Rohrschrämmaschine: Typen, Funktionsprinzip und wie man eine auswählt (2026)

Eine Rohrabschrägung, die bestimmt, ob Ihre Schweißnaht genehmigt wird oder zur Nachbildung zurückkehrt. Die Auswahl des falschen Rohrs oder des falschen Typs bedeutet, dass der richtige Typ bei der richtigen Auswahl der Spezifikationen für die Herstellung des gewünschten, vermeidbaren Rohrs erforderlich ist. Dieser Artikel untersucht jede Art von Rohrabschrägung, das Schneidprinzip, das sie bedienen, und eine 7-stufige Methode, die Sie für Ihren nächsten Einkauf verwenden können, mit Abschrägungswinkeln, die AWS D1.1, ASME B31.3 und API 1104 zugeordnet sind.

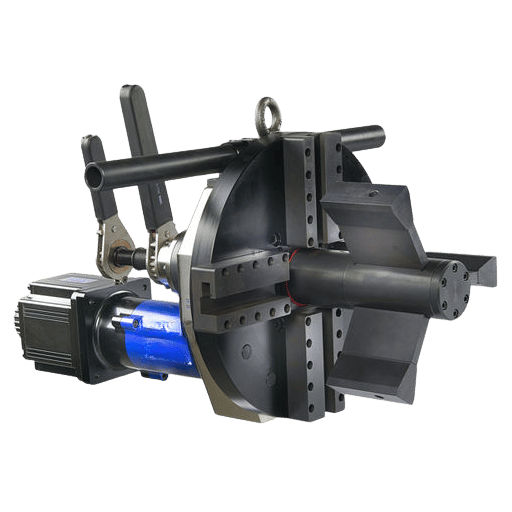

Was ist ein Rohrschrämmaschine? (und warum Edge Prep die Schweißqualität bestimmt)

Ein Rohrabschrämgerät ist ein angetriebenes Werkzeug, das das zu verbindende Rohrende durch schräges Schneiden des Endes vorbereitet, die abgeschrägte Kante gibt dem Schweißer einen Ausgangspunkt für die Abgabe einer Volldurchdringungsschweißung Die erzeugte Nut enthält das Füllmetall, verwaltet den Wärmeeintrag, und sorgt für die Durchdringung des Wurzeldurchgangs zwischen den beiden Rohrenden.

Jeder Schweißer kann ohne die richtige vorbereitete Geometrie zu einer schlechten Fusion oder mangelnder Durchdringung führen.

Die drei anderen Anwendungen unterscheidet sich die Maschine von einer Säge, einem Schleifer und einem Fasenwerkzeug Eine Säge ist nicht in der Lage, den Schnitt in einem anderen Winkel als 90 zu machen, da sie senkrecht zur Rohrachse schneidet Ein Winkelschleifer entfernt Material, ist jedoch unpraktisch, um den gleichen Winkel über den gesamten Rohrumfang beizubehalten.

Ein Anfaswerkzeug fügt eine kleine dekorative oder entgratende Kante (weniger als 30) hinzu, nicht die Schweißnut in voller Tiefe des Abschrägs. Der Rohrabschrägungsring hält gleichmäßige Grade (30, 37,5, 45) über das gesamte Ende der Rohrschweißverbindung nach der Schweißverbindung, Benutzer.

Warum das wichtig ist: AWS D1.1 Strukturschweißcode – Stahl und ASME B31.3 Prozessrohrleitung Beide geben an, dass die Kantenvorbereitung einer qualifizierten Schweißverfahrenspezifikation (WPS) entsprechen soll. Ein WPS ist ein Dokument, in dem die Geometrie, die Sie zu emulieren versucht haben, aufgeschrieben wird. Da Schweißverfahren durch Geometrie getestet werden, ist eine Abweichung in der Schrägform gut genug für Non-Conformance & sogar, wenn die fertige Schweißnaht perfekt aussieht.

Eine ausführlichere Erläuterung der größeren Kategorie finden Sie in unserer Beschreibung von Was ist eine Abschrägungsmaschine und Der Zweck des Abschrägens in der Fertigung.

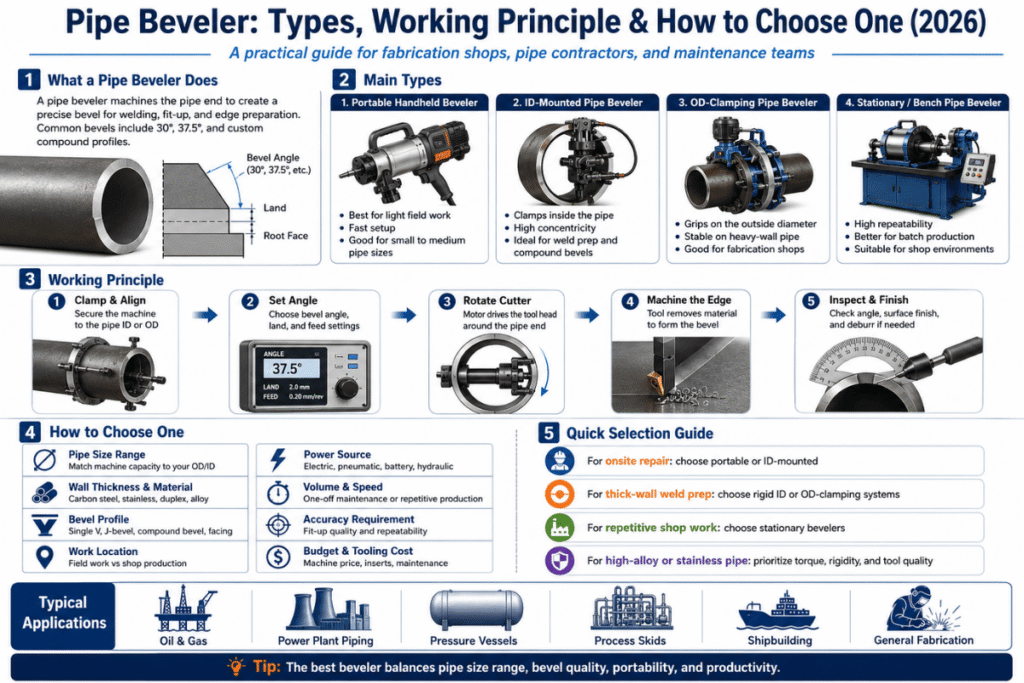

Funktionsweise eines Rohrschaufels: Das Schnittprinzip in 60 Sekunden

Der Rohrabschrämler klemmt sich am Rohr fest, dreht dann den Werkzeugkopf bis zum Rohrende und entfernt dabei Material mit Hartmetalleinsätzen in einem voreingestellten Winkel, er kann in vier Hauptkomponenten getrennt werden: ein Klemmsystem, ein Antrieb, ein rotierender Werkzeugkopf und die Schneideinsätze.

Das Spannsystem ist das Merkmal, das einen professionellen Abschrägungsgerät von einem Hobbywerkzeug unterscheidet, es gibt zwei Arten von Universalklemmsystemen, die ersten Klemmen von innen durch Aufweiten eines Innendorns im Inneren des Rohrrohrs.

Diese Art von Klemme ist sehr genau, schnell und ist die häufigste Art, wenn die Rohr-ID zugänglich ist Der zweite Typ bohrt externe Klemmbacken auf der Außenseite des Rohrrohrs Dies ist die einzige Wahl der Klemme für Wärmetauscherrohrbleche und alle anderen Anwendungen, bei denen Sie nicht an die Innenseite des Rohrrohrs gelangen können.

Daten von GBC-Industriemaschinen können einen Anhaltspunkt dafür geben, wo Dornklemmsysteme verwendet werden können. Ihre Daten zeigen Klemmen, die je nach Maschinenklasse von 10 mm ID am kleinen Ende bis zu 1.016 mm (40) am großen Ende reichen.

Sobald das Rohr in der Maschine aufgebaut ist, dreht sich der Werkzeugkopf um die Rohrachse und schneidet die Abschrägung in einer Umdrehung. Die Klassen werden durch den Drehzahlbereich pro Minute (RPM) definiert: Eine tragbare Abschrägung reicht von 5-120 RPM mit enormem Drehmoment (für dicken Wandstahl), während eine stationäre und CNC-Bankmaschine auf dem Schneidkopf mit Einsätzen mit recht kleinerem Durchmesser von 2000-6000 RPM reichen kann Der Antrieb kann pneumatisch (bevorzugt für ATEX oder die inhärenten Gefahrenbereiche), elektrisch (der Hauptneukauf) oder hydraulisch sein.

Carbide ist der Schnitt Der spezifische Einsatz hat eine festgelegte Geometrie – Ablage, Radius oder J-Profil Derselbe Bediener kann von einer V-Abschrägung zu einer J-Abschrägung wechseln, ohne die Maschine durch Austausch der Einsätze zu ändern.

Eine typische vorgeschlagene Spanlastformel, die auf industriellen CNCs verwendet und auf vielen Praktikerseiten veröffentlicht wird, ist Chiplast = Fräserdurchmesser/200. Die Werkzeuglebensdauer für Hartmetall wird in linearem ft Schnitt angegeben, nicht in Stunden Laufzeit. Ein Einsatz kann je nach Material und Kühlmittel 50-300 ft MS-Kohlenstoffstahl (Mittelwand) vor dem Kantenversagen vorbereiten.

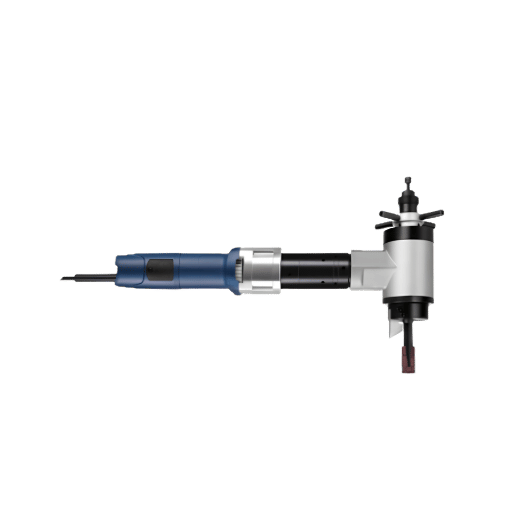

5 Arten von Rohrabschrämern: tragbar, oben, CNC, kaltgeschnitten und ID/OD-montiert

Eine Möglichkeit, den Markt zu kategorisieren, besteht in fünf Funktionsebenen, getrennt durch den Ort der Arbeit, die von der Maschine verwendete Methode zum Greifen und Stützen des Rohrs und ihren Automatisierungsgrad Die 5-Typ-Taxonomie hat die Marketing-Eimer (“light-duty,” “industriell,” “heavy-duty”) durch beschaffungsrelevante Spezifikationen wie folgt ersetzt:

Two distinctions are worth pointing out. First, the cold-cut versus hot-cut division cuts through these types-though most contemporary pipe bevelers are mechanically (cold-cut)- flame and plasma cutting are still employed for initial-stage rough prep using mechanically finishing. Second, ID-mounted versus OD-mounted is a clamping choice-not a product distinction-in the same chassis a single brand usually has both clamping systems.

What is a portable pipe beveler?

A portable pipe beveller is a modular machine, typically 18-60 lbs (8-27 kg.) which is portable by a craftsman to the pipe being beveled, rather than vice-versa. The machine is clamped on the pipe using an internal mandrel or external jaws, then the head rotates around the pipe end beveling it in a single pass. Searches for “portable pipe beveller” increased some ten times in 2025 (DataForSEO Google Ads data: 30 monthly searches in May 2025, to 320 by September 2025), indicating that we are seeing clearer movement toward existing-on-sitenew pipe prep for construction projects and pipeline tie-in points. Portable bevelers typically are adjustable for any pipe diameter in the .5-24 range, and handle up to about 30mm of wall thickness before the user needs to step up into a bench or CNC class. The tradeoff: precision angle control of a CNC machine, holding 0.5. Where precise angle determines weld integrity, compared to typical 1.0 sub-1.0 weld prep on many critical-service welds though: OSWPS calls for 2.5 tolerance.

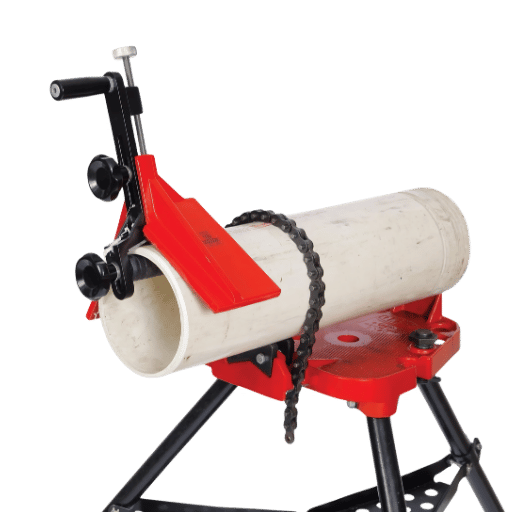

Material-Specific Bevelers: Steel, Stainless, PVC, and HDPE Plastic

The same bezel cannot be applied to every material with the same insert. Superficially similar at the cutting edge, steels and PVCs differ greatly at the tool, feedrate, and cooling strategy parameters. Combine the wrong tool with the wrong parameters, and you get ridging on plastics or quick wear on stainless.

Can a beveling tool be used on PVC pipe?

Yes, but not with the same insert used on steel. PVC bevellers use a router bit or high-speed steel cutting tool which shears the plastic without generating enough heat to melt the edges. Most plastic-bevelling tools operate without coolant, with air providing sufficient heat removal, and run at significantly higher RPMs and lower feeds than steel bevelling. Used on residential drain and irrigation pipe, the Bevel Pro tool—which is a flush- or high-low-handled mechanism—produces a 15° bevel on C-35 or SDR 26 pipe end in roughly ten seconds per pipe end. Used on HDPE butt-fusion prep, the tool body switches to a planar facer with a perpendicular face to produce a flat, not beveled, surface for the bond. Use a steel insert on PVC and you’ll end up with a glazed, melted ridge into which your Solvent Cement can entrap; use a PVC router bit on Schedule 40 steel and you’ll break or dull the bit in minutes.

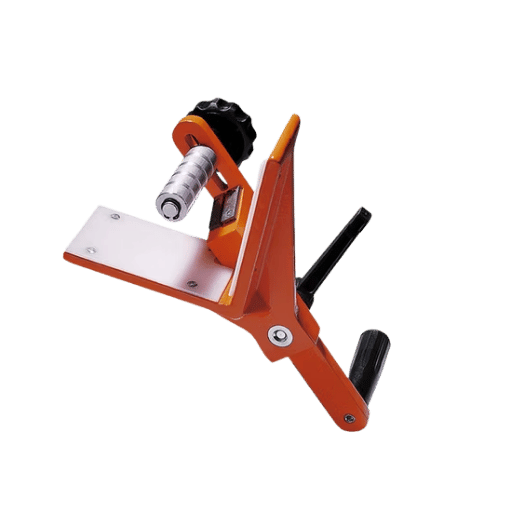

Bevel Geometry and Standards: V, J, U, and K Grooves Explained

Geometry is where most quality problems and most rework begin. The bevel angle is one variable; the land (or root face), root opening, and grove type all are equally critical and equally code-dependent. The four geometries most likely to be encountered in process and structural piping are V, J, U, and K—none of which are joined without the right wall thickness and process welding specifications to go along with it.

The values above are derived from the joint geometries detailed in ISO 9692-1 Welding and allied processes — Recommendations for joint preparation, and cross-checked against AWS D1.1 prequalified joint details. The single-V at 37.5° per side (75° included) is the default for operational used in ASME B16.25 standard weld end geometry on 22 mm wall pipe that feeds into ASME B31.3 process piping.

Code requirements vary. This is where shops bleed profits. Kedes Machine’s industry cheat sheet documents a fabrication shop losing a $200,000 contract by cutting 37.5° bevels on a pipeline job that called for 30 °, per API 1104-the bevels were present but did not match the qualified WPS, thus each joint had to be reworked. Takeaway is operational: there is no “one-angle-fits-all.”

For complete code references and understanding the difference between bevel angle and included angle, see our companion guides to beveling standards, groove weld symbols, und edge weld quality and inspection.

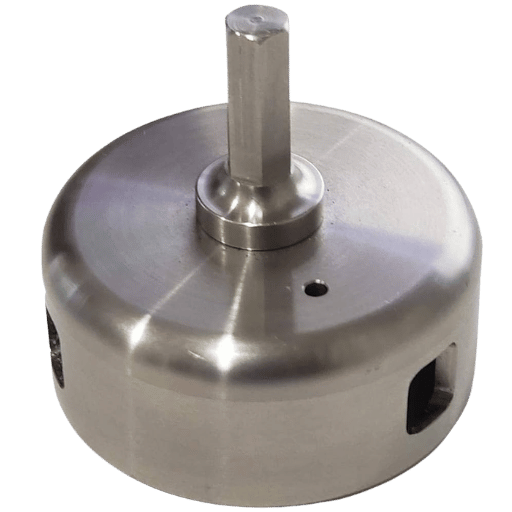

Critical Specs to Compare: OD/ID Range, RPM, Tool Slots, Wall Thickness

When quotes for similarly specified pipe bevelers come in drastically different, the data sheet reveals the “what makes it capable?” list of five: working range, wall-thick rating, tool slots, rpm/ feed, re-clamp accuracy.

• Working range (OD or ID)-Locate rated min/max plus dead band, where the mandrel cannot engage (most gearboxes have a 0.5″-1.0″ dead band between mandrel size).
• Wall thickness rating-Listed maximum assumes single-V cut. Derate by 0.30 for J-prep or compound bevels. “40 mm wall” typically translates to 28 mm J-prep.
• Tool slots-One slot for just bevels, two for facing, three for counterboring. Multi-slot prep machines deliver the full join geometry in one setup, eliminating re-clamp fit-up errors.
• RPM & feed control-Options between coarse or smooth RPM control (electronic or pneumatic regulator) are more benefit than v-max RPM. Do you want stainless and steel to feed differently, or force to be a compromise (fixed RPM speeds)?
• Clamping repeatability-Ask for mandrel “concentricity TIR” (total indicator runout) after re-clamp. Anything above 0.25 mm shows up as inconsistent circumferential bevel flatness.

Industry published equipment accuracy data, though not from common neutral test std, can be give an idea of practical working:

Due to API 1104 max tolerance of 5 vs. 2.5 for ASME B16.25, a handheld electric beveler at1,would only have 2.01 to 4.95 taking the tight angle into account-roughly half the tolerance budget back to the operator.

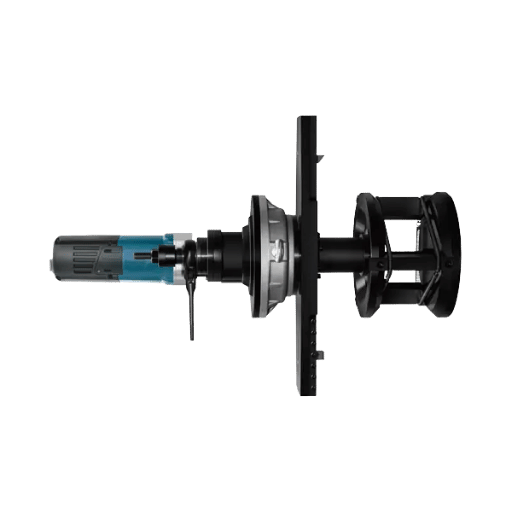

How to Choose a Pipe Beveler: 7-Step Selection Framework

The framework below runs through seven decisions in order. Each one eliminates candidate machines further, so by number seven you normally have one or two matches that are the best value. This framework has been assembled from public welding code requirements as well as field practice in structural, process and pipeline work – it is not “one machine brand’s advice.”

1. Material first. Steel, stainless, plastic and exotic alloys all need different insert and feed strategies. If you generate two materials, you should have two insert sets; not necessarily two machines – just make sure the chassis is rated for both.
2. Determine the pipe OD with the 90% rule. Select the machine whose mandrel diameter exceeds 90% of the diameters you expect to cut this year, not the largest you have ever seen. Edge-case maximum large pipe will most likely be sent out for shop or subcontract work.
3. Determine the wall-thickness ceiling. Build in a derate (25%) for the J-prep. Today, if you are cutting a 30 mm wall, you will need a 40 mm rated machine if you might J-prep tomorrow.
4. Make a decision about site or shop. Field operations > 24″ pipe = portable. Production runs of identical joints = bench or CNC. Combination environment = portable with stationary backup is more economical than dedicated CNC.
5. Match bevel shape to program. Single-V tooling will serve 80-90% of ASME B31.3 applications. If you will require API 1104 mainline (30 degrees) and B31.3 (37.5 degrees), you will need an adjustable angle machine rather than fixed-angle units.
6. Choose drive based on environment. Pneumatics for ATEX/Explosive atmosphere. Electric (corded or battery) for general construction. Hydraulic for mainline or offshore pipeline. Electric is now the most popular choice for new machinery, barring ATEX.
7. Factor in volume and duty cycle. Less than 50 joints/week = portable. 50-500 = bench mounted. Over 500 joints/week = CNC usually amortizes within 18 months, based on standard North American labor rates.

A contrarian note from a Practical Machinist forum thread: for a single small-diameter pipe bevel, an experienced fitter wielding a15″ double-cut bastard file can probably beat any portable beveler in finishing the joint before that portable unit is unboxed and clamped. Tacking together the purchase of a machine for one yearly weld makes no real sense; above framework assumes long-term volume.

For an eye-opening look at how the machinery functions, see our pillar on professional milling and beveling machines, which lists working ranges and price bands by configuration.

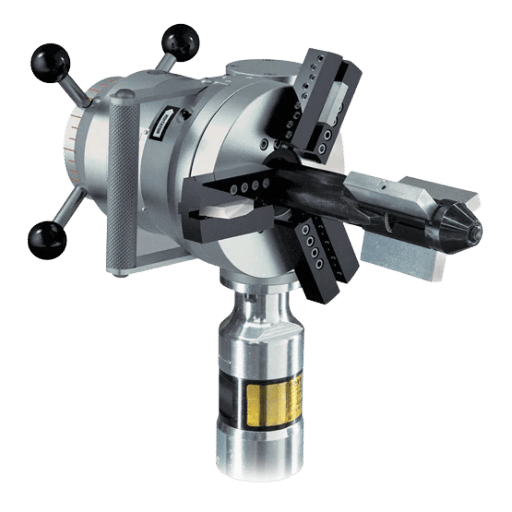

Pricing and ROI: What $1,500 vs $30,000 Actually Buys You

The 20 difference between the least and most expensive pipe bevelers illustrates the capability cliffs that are purchased: clamp accuracy, pipe size range, automated vs. manual. Below are the 2025-early 2026 public price bands for new equipment from the dominant SERP results -Steelmax, Tri Tool, Reed, Mathey Dearman and Amazon platform listings -and RESIZE’s own portable and bench ranges. Prices below are for reference only, they are a frequent snapshot and do not necessarily reflect current market pricing. For a quote on recent prices, please contact us directly.

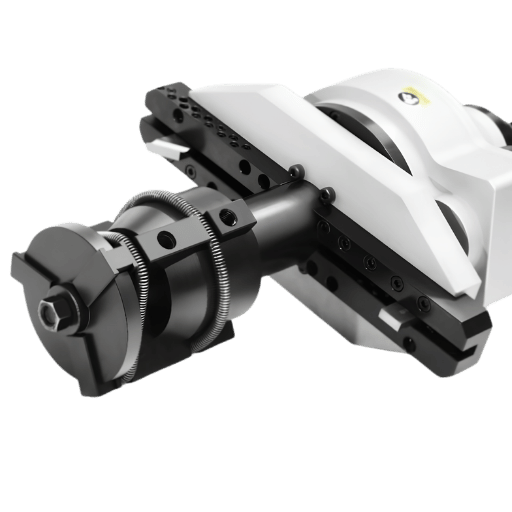

Common Mistakes and On-Site Best Practices

The mistakes that drive rework on a beveling job are documented across welding industry references, and they are remarkably consistent. Miller Electric’s nine common pipe-welding issues and Kedes Machine’s WPS-compliance case studies converge on the same five preventable errors.

1. Cutting avoid checking the WPS bevels. The most costly mistake on-site. The bevel that” looks right” is the one that was qualified for your weld procedure. Always check qualification before first cut.
2. Reading bevel angle as included angle. A drawing stating “75° groove” can be taken to mean 37.5° per side (correct) or 75° per side (incorrect – a 150° included angle; wrong). Confirm with owner before machining.
3. Incorrect root face thickness. Too thick, over 3mm, causes lack of penetration; too thin, under 1mm, leads to burn-through. The 1.5-1.6mm 0.5-0.8mm range in ASME B16.25 and API 1104 is a deliberate compromise.
4. Applying a stick-welding joint prep to TIG. These two processes have very different joint design strategies; day to day, sticking causes lack of fusion. When welding dirty orifice components, Stick welding can operate with a 1/8″ gap and a 3/32″ knife-edgeland;tig and RMD wire processes need a 1/8″-5/32″ gap and a 3/32″ knife-edgeland. Treating all three the same produces root lack of fusion.
5. Missing the flat-grind after plasma or oxy-filing pipe prepping. These two processes leave a layer of oxides around the cut edge that produce porosity, inclusions, or lack of fusion. Use of cold-beveler with abrasive wheel grind cuts avoid this and are one of the strongest practical reasons to specify or use them, especially on critical-service pipe.

Industry participants report a sixth problem that log-ins not address on inspection sheets: equipment improvisation. Hacks shown to work for non-critical service and small runs, including the ubiquitous Ridgid 300 pipe threader with grinder, show up regularly on discussions ontheor keogs. The folk position on this use “it works for non-critical, small, one-shot jobs; it does not work for code work.”

A field example to illustrate the cost: a fabrication shop in the southeastern USA cut 37.5° bevels for a 20-mile pipeline tie-in project specified per API 1104 (30° required). No problem with the angle, but it was outside the qualified WPS. All 480 joints had to be ground, re-prepped, and re-welded. Labor alone, at $85/hr loaded with two crews, exceeded $200,000. Correct machine, ok bevel;, just failed to read project spec before setting angle.

To see a parallel field example with a more favorable cost of raw material, see our companion guides on pipe weld fit-up und beveling vs chamfering.

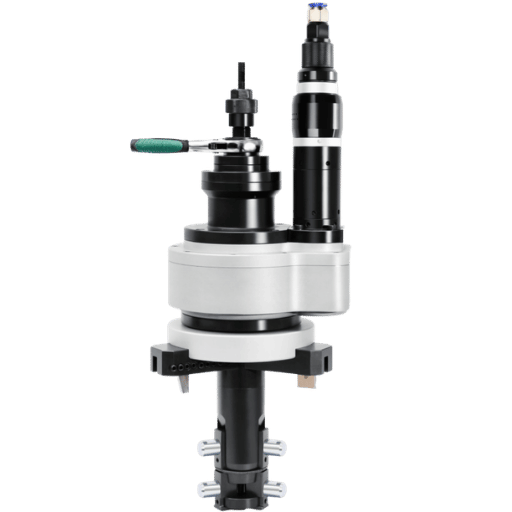

Industry Outlook: Electric Drives, Smart Bevelers, and AI-Adaptive Cutting

Three curves are shifting pipeline unit costs through 2027 and well beyond, and each has data current enough to influence a purchase made today.

Electric versus air. Reports and Data values the electric pipe-beveler market at USD 0.45 billion in 2024, projected to reach USD 0.85 billion by 2034. A LinkedIn industry trend forecast out 2025 values the segment CAGR at 5.6% from 2026, faster than the overall beveling machine market: 4.16%. Top drivers are improved battery technology aboard a brushless motor that can run a full-shift, and the removal of compressors on most construction sites (Business Research Insights, $0.4 billion in 2026, climbing to $0.57 billion in 2035).

Smart adaptive cutting. Pemamek’s 2026 welding-automation outlook emphasizes AI-adaptive welding and digital twins, while the same engineering is directed toward the bevel: in cut angle and feed sensors that adjust parameters on-the-fly, compensating for pipe ovality or wall thickness variation. This was first demonstrated by suppliers in 2024; it is now hitting production CNC bevelers starting in 2025-2026.

Code convergence to cold cuts. ISO 9692 already demands that Jbevels and U-bevels on pipe too thick for thermal cutting meet tolerances too tight for welding. EN 1090 and ISO 3834 build on this for CE-marked construction, demanding that welds or piping component fit / finish have the same precision. In practice, if your shop is doing structural / CE-marked, nuclear, or pressure vessel pipe, you will be moving toward a colder, mechanical automated beveler before too long – not the opposite.

Planning capital spend for 2026? Then a practical consideration is establishing an electric drive preference over pneumatic, investing in multi-slot capacity for J-tapers, and allocating budget for an replacements for-carbide insert kits EOM at a rate of one per 12-18 months depending on the work rate. The machine commissioned now will still be in service to cut 2031, the inserts will not.
