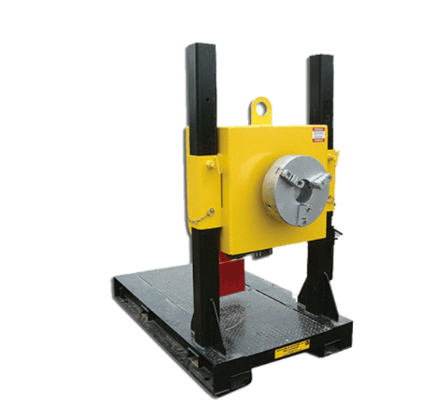

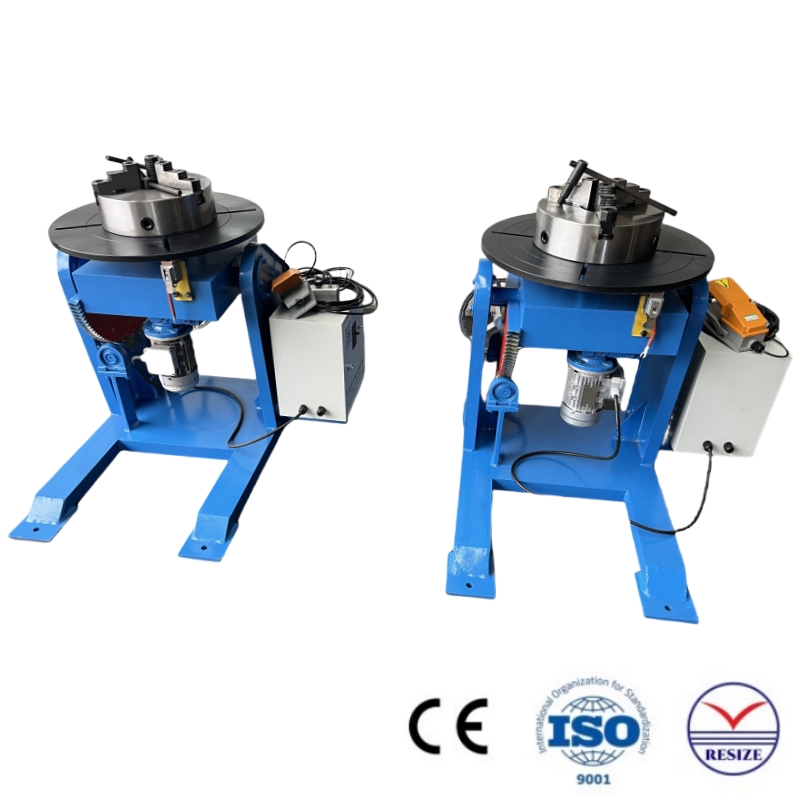

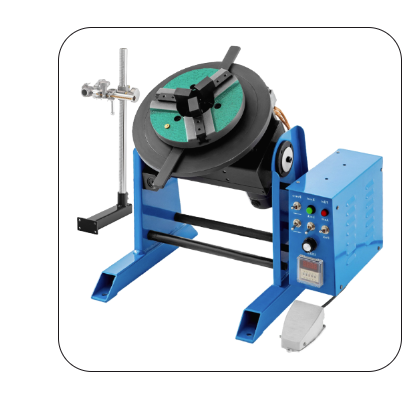

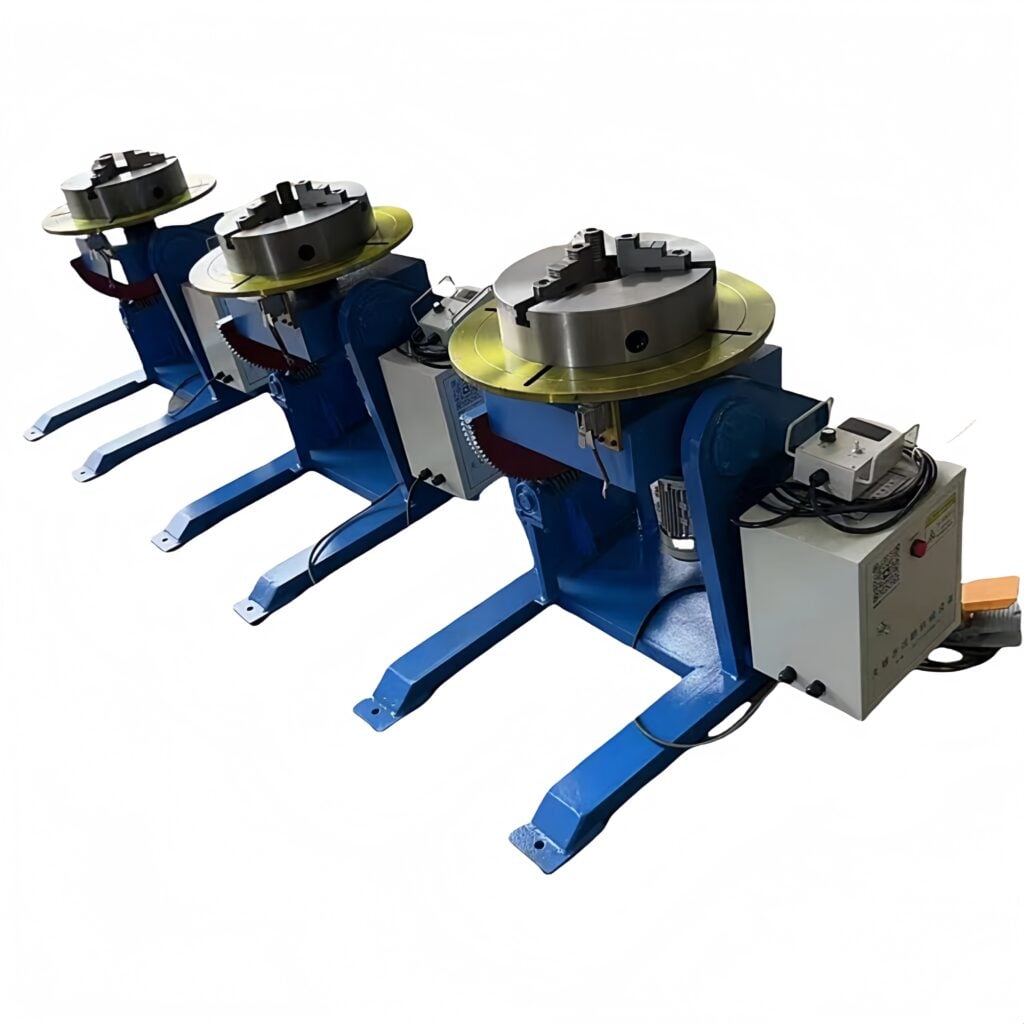

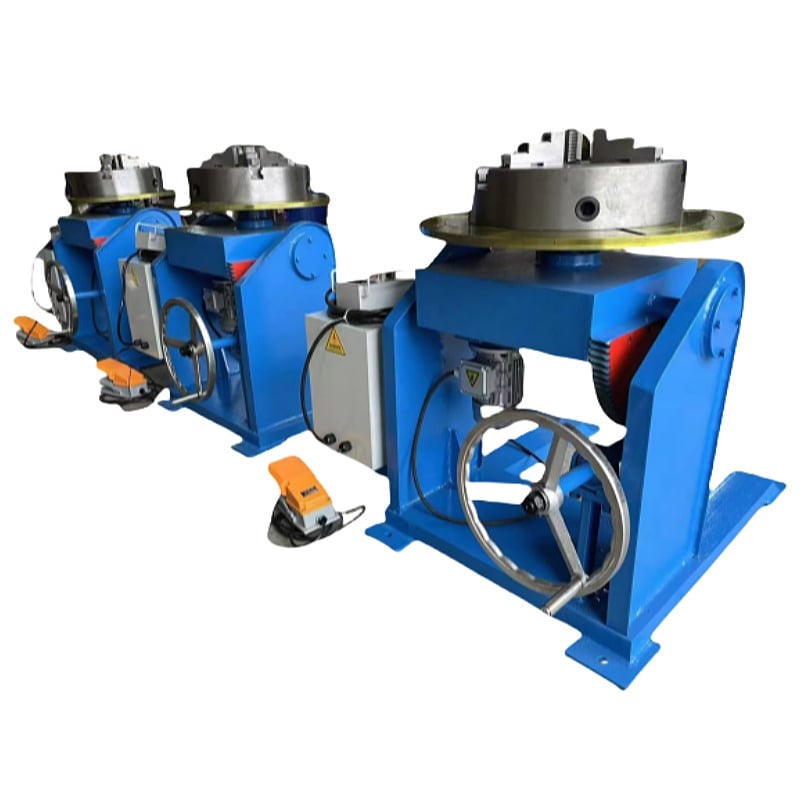

Take your welding operations to the next level with our state-of-the-art Pipe Welding Positioner. Designed to meet the demands of modern industries, this innovative tool ensures flawless welds, reduces operator fatigue, and boosts overall efficiency.
高負載能力: Supports pipes of various sizes and weights, up to 5,000 lbs.
Adjustable Tilt Angles: Handle complex welds with ease by tilting pipes to the optimal angle.
人體工學設計: Minimize operator fatigue with user-friendly controls and positioning.
Programmable Controls: Save time with repeatable, automated welding sequences.
| 模型 | Load | Table size | Rotation speed | Tilting speed | Rotary kW | Tilting kW | Tilting angle | 速度類型 |
|---|---|---|---|---|---|---|---|---|
| ZHB-3 | 300kg | 600mm | 0.25–2.5rpm | / | 0.18 | / | 0–90° | AC Stepless |
| ZHB-6 | 600kg | 1000mm | 0.09–0.9rpm | 0.42rpm | 0.75 | 0.75 | 0–90° | AC Stepless |
| ZHB-12 | 1,200kg | 1200mm | 0.05–0.5rpm | 0.4rpm | 1.1 | 1.1 | 0–120° | AC Stepless |
| ZHB-30 | 3T | 1400mm | 0.05–0.5rpm | 0.25rpm | 1.5 | 1.5 | 0–110° | AC Stepless |
| ZHB-50 | 5T | 1500mm | 0.05–0.5rpm | 0.25rpm | 1.5 | 2.2 | 0–110° | AC Stepless |
| ZHB-100 | 10T | 2000mm | 0.05–0.5rpm | 0.2rpm | 3 | 4 | 0–110° | AC Stepless |
| ZHB-150 | 15T | 2200mm | 0.04–0.4rpm | 0.15rpm | 4 | 7.5 | 0–110° | AC Stepless |
| Above 15T | Customization and manufacturing are both available. |
Boost Productivity. Reduce setup time by up to 40% with automated adjustments.
Ensure Consistent Quality. Achieve flawless welds every time with precise positioning.
Increase Operator Satisfaction. Provide a safer, more comfortable working environment.
Enhance Safety. Eliminate the need for manual lifting and awkward postures.
This guide provides an in-depth explanation of pipe welding positioners, their operation, and the reasons why welders and fabricators value them. Whether you’re an expert looking to improve workflow or a fresh one developing basic know-how, see how these tools are able to help with the accuracy and productivity of welding projects.
