2 Axis Welding Positioner

Get rock-steady stability and pinpoint accuracy from our two-way turntable. Built to cut vibrations and maintain a steady arc, this machine speeds up your work while delivering the clean welds your top jobs require.

Home » Welding Positioner » 2 Axis Welding Positioner

Top Features of Our 2-Axis Welding Positioner

Dual-Axis Precision: Thanks to its forward-and-up tilt alongside smooth spin, this unit sets your job at the perfect angle most times, sparing you both sweat and last-minute fixes.
High Payload Capacity: Built to cradle large parts, the positioner cuts the number of lift-offs, speeds the line, and lets a single operator tackle what once needed an extra hand.
Advanced Stability: Heavy brackets and a flat foot keep the machine planted, leaving no room for shake, which guards weld quality and protects nearby workers and tools.
Customizable Options: Update table size, dial in turn rates, or add controls your team prefers; every adjustment comes factory-sealed so you get exactly what the job demands

Category	Specifications
Model Name	2-Axis Welding Positioner (Standard Variant)
Applications	Construction, OEM manufacturing, energy sector, contract manufacturing
Payload Capacity	Standard: Up to 500 kg (1,102 lbs) Heavy-Duty (Optional): Up to 1,000 kg (2,204 lbs)
Rotational Speed	Rotational Axis: 0.5–3.0 RPM adjustable Tilting Axis: 0.2–1.2 RPM adjustable
Positioning Accuracy	±0.1° for both rotational and tilting axes
Degrees of Rotation	Rotational Axis: 360° continuous Tilting Axis: 120° (-30° to +90°)
Stopping Mechanism	Electromechanical brakes Automatic locking for operator safety
Base Dimensions	Standard Base: 1,000 mm x 1,200 mm (39.4 in x 47.2 in) Space Requirement: 2,500 mm x 2,500 mm (98.4 in x 98.4 in)
Height (Adjustable)	700 mm to 1,200 mm (27.6 in to 47.2 in)
Weight	Approx. 650 kg (1,433 lbs)
Power Requirements	Voltage: 230V or 400V, 3-Phase Frequency: 50/60 Hz Power Consumption: <10 kW (Operational), <1 kW (Standby)
Material	High-grade alloy steel with anti-rust coating Load Table: Hardened steel with stainless steel surface
Vibration Absorption	Integrated damping technology
Certifications	ISO 9001, CE Marking, OSHA-Compliant
Standards Met	ASTM A36 for steel quality
Environmental Specs	Operating Temp: -10°C to +45°C (14°F to 113°F) Storage Temp: -20°C to +55°C (-4°F to 131°F) Humidity: Up to 90% RH, non-condensing IP Rating: IP54
Available Options	Advanced Control Panel, PLC for preset positions, Foot Pedal Control
Custom Configurations	Dimensions, power setups, extended rotational range (upon request)
Warranty & Support	Provided

Best 2 Axis Welding Positioner In RESIZE

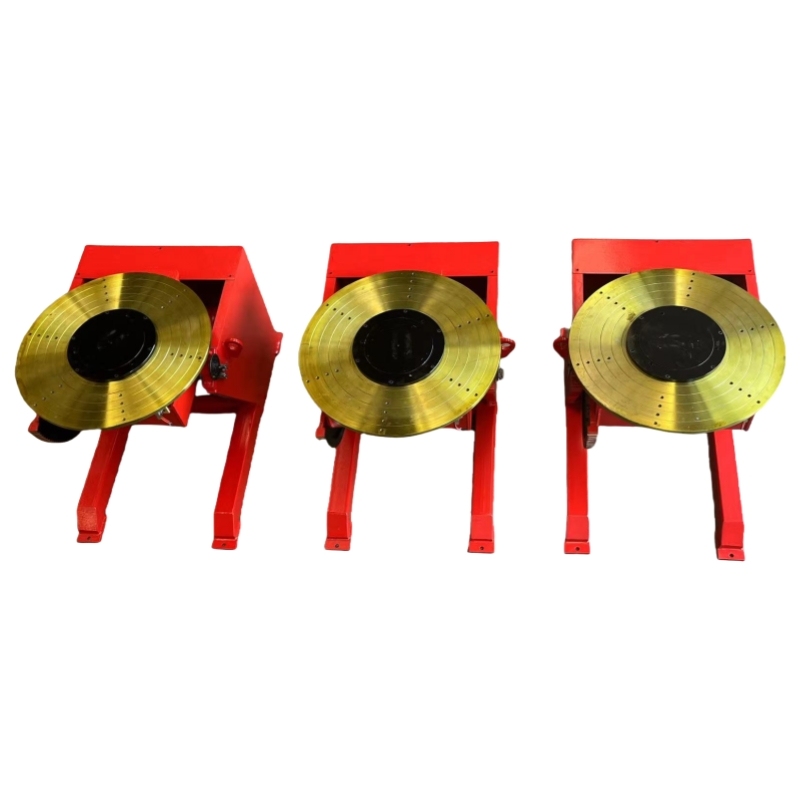

welding postioner

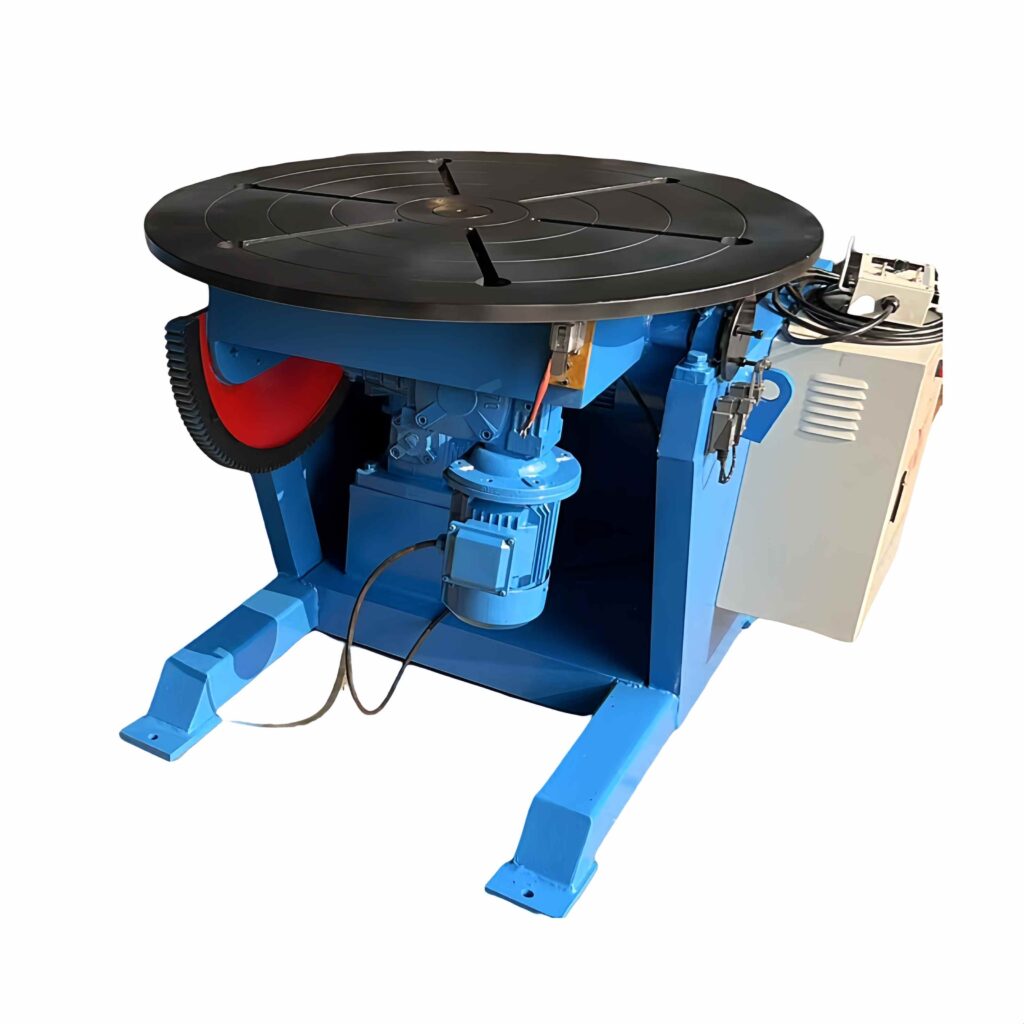

2 axis welding positioner

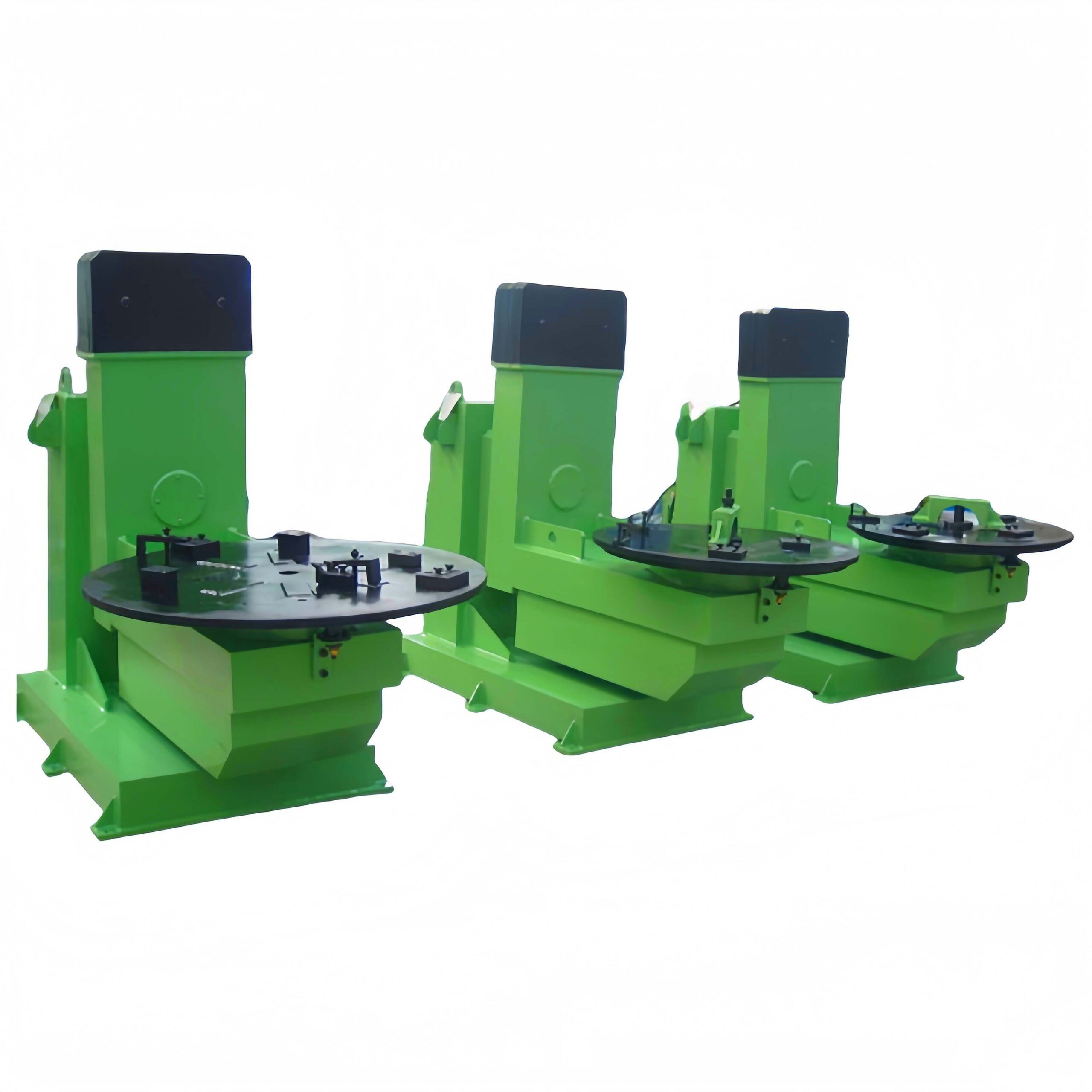

U type axis welding positioner

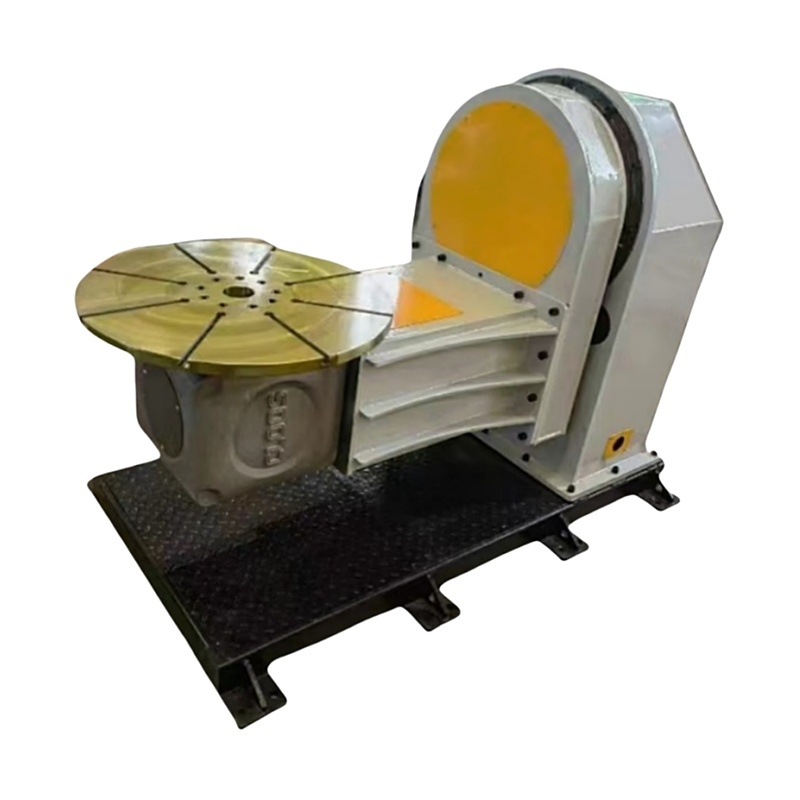

L type welding positioner

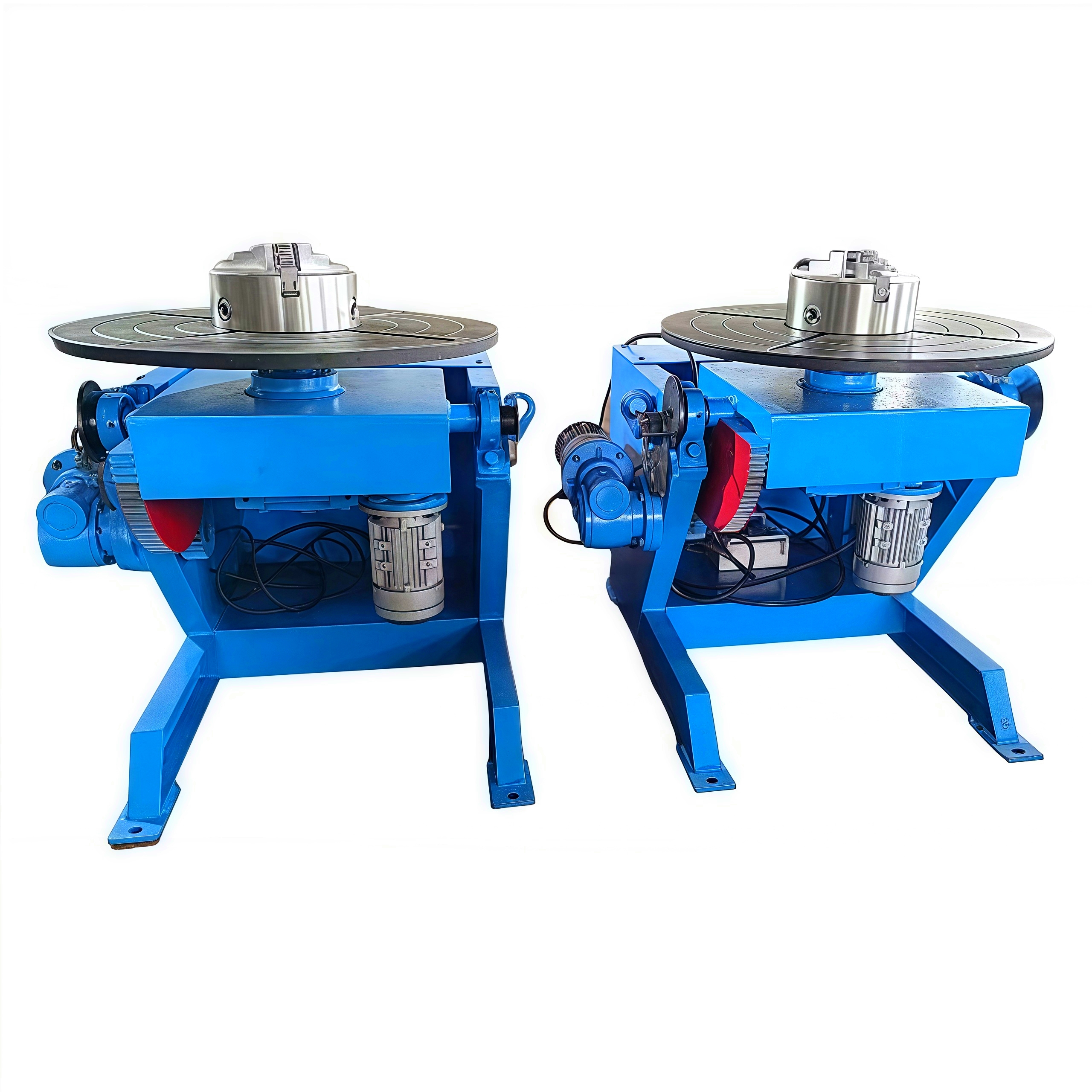

2 axis welidng positoner

L type welding positioner resize welding

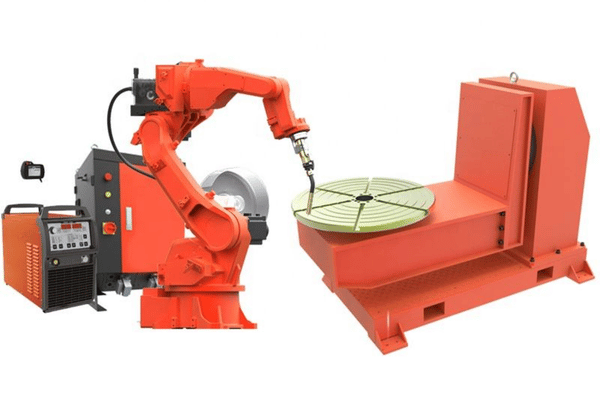

Unlock the Benefits of Precision Welding with Our 2-Axis Welding Positioner

Better Weld Quality. The dual-axis setup lets the torch move in two directions at once, giving you smooth, accurate seams every time.
Faster Workflows. Because the machine turns on its own, you spend less time tweaking settings and more time getting parts out the door.
Safer Operation. A solid, shake-free frame cuts down on unexpected jolts, protecting the operator and keeping the shop within safety rules.
Budget-Friendly & Tailored. Heavy-duty parts stand up to daily use, while optional add-ons let you configure the system to your needs so you spend only what you really need.
