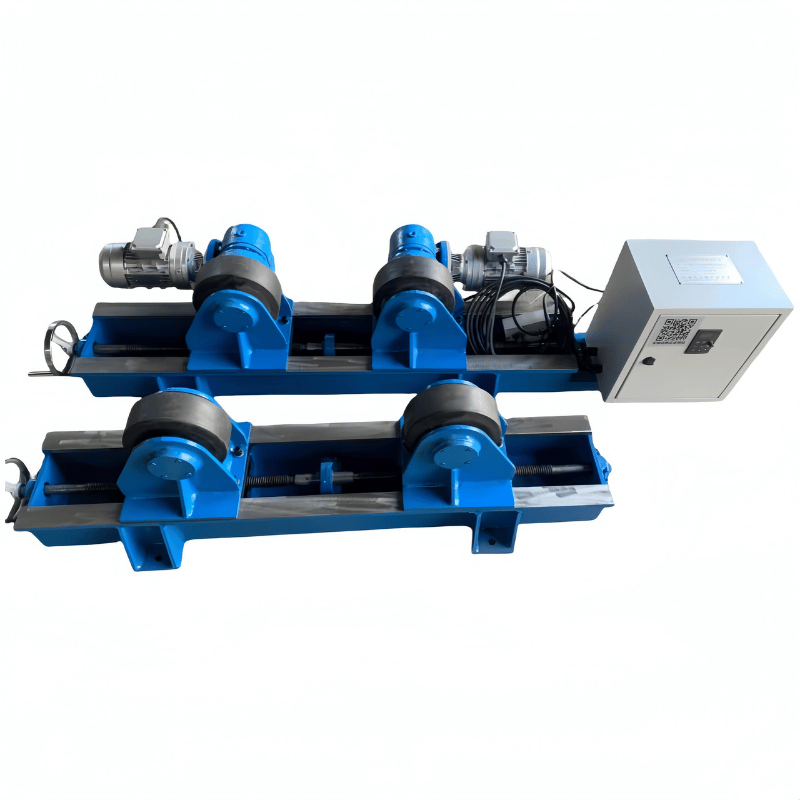

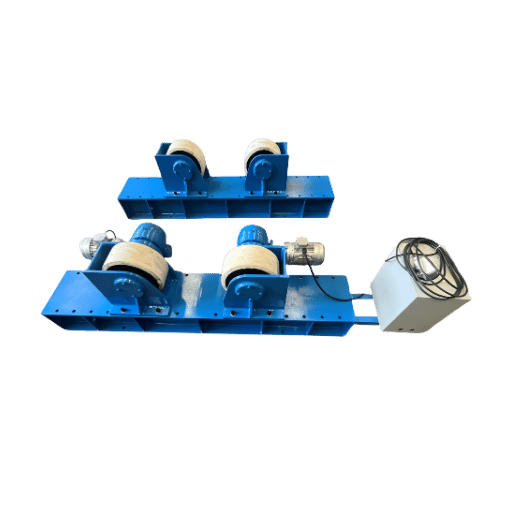

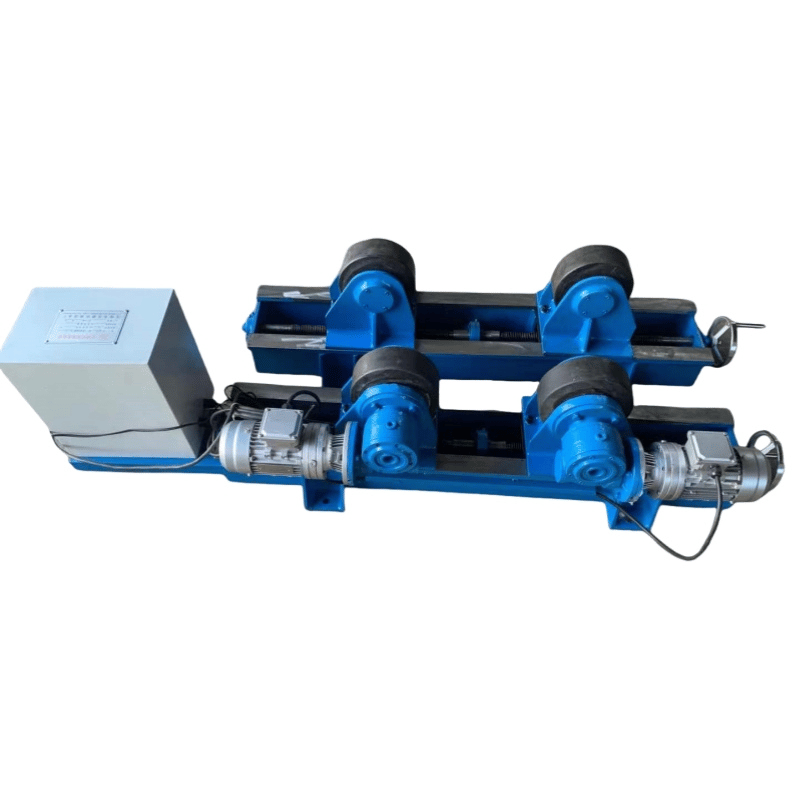

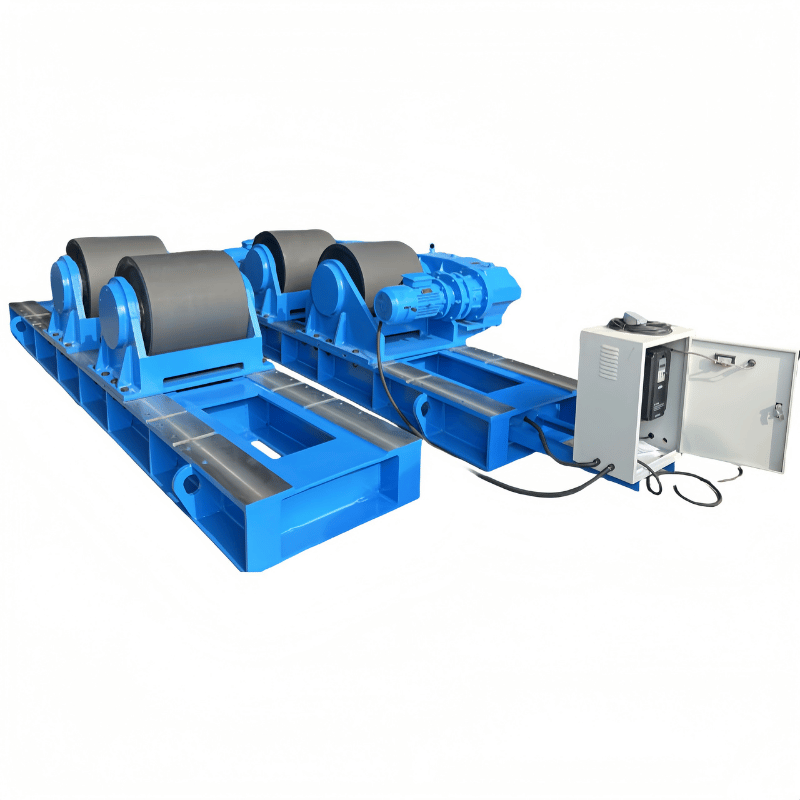

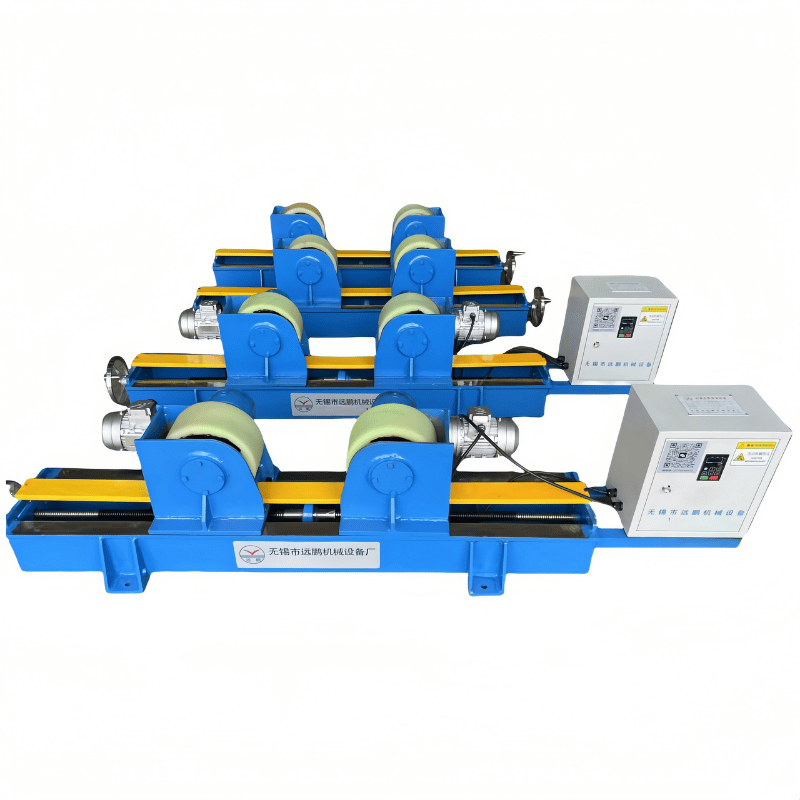

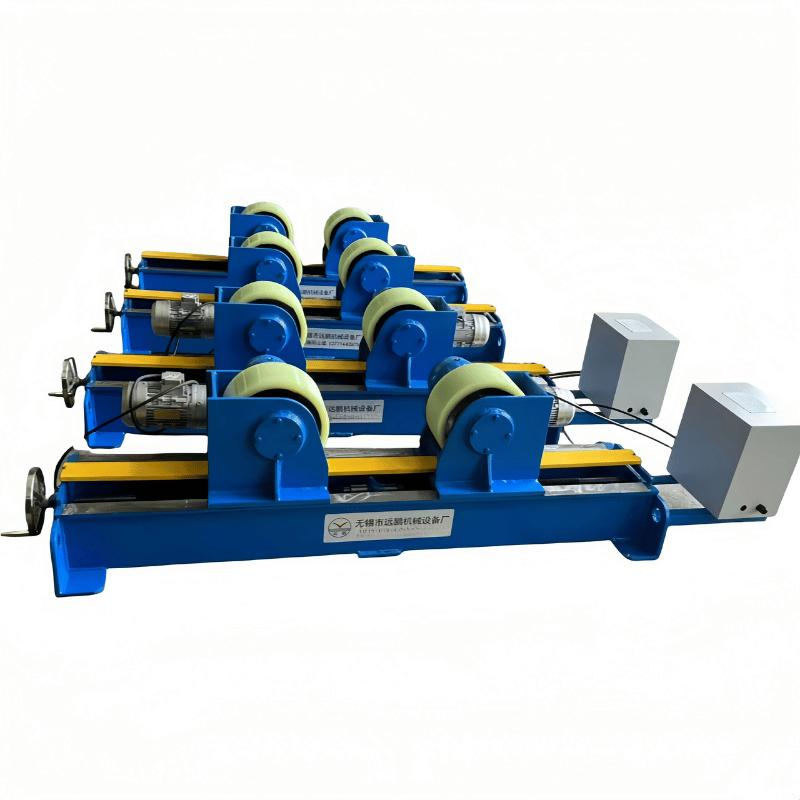

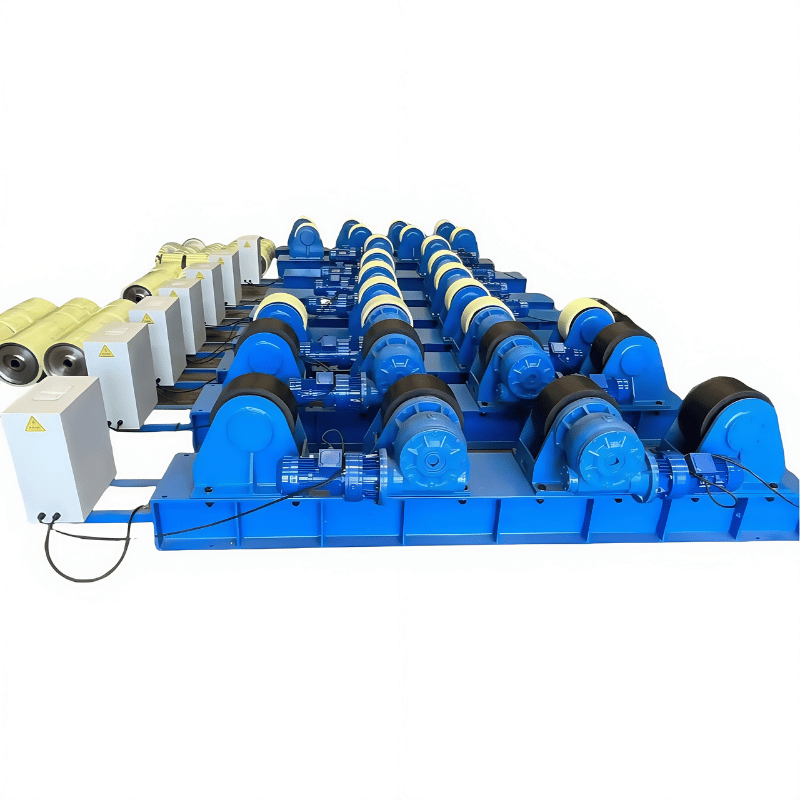

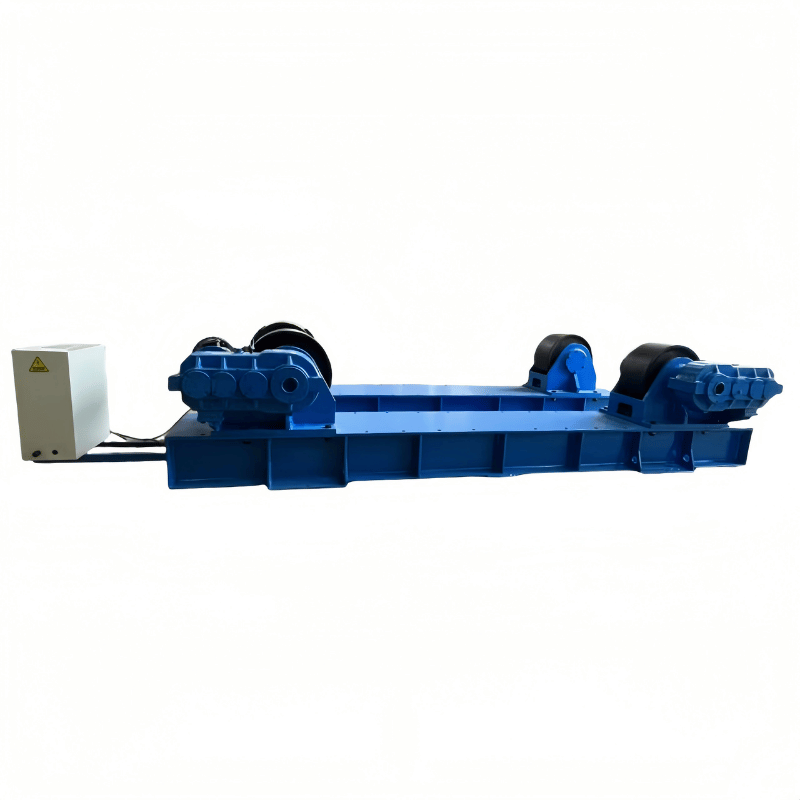

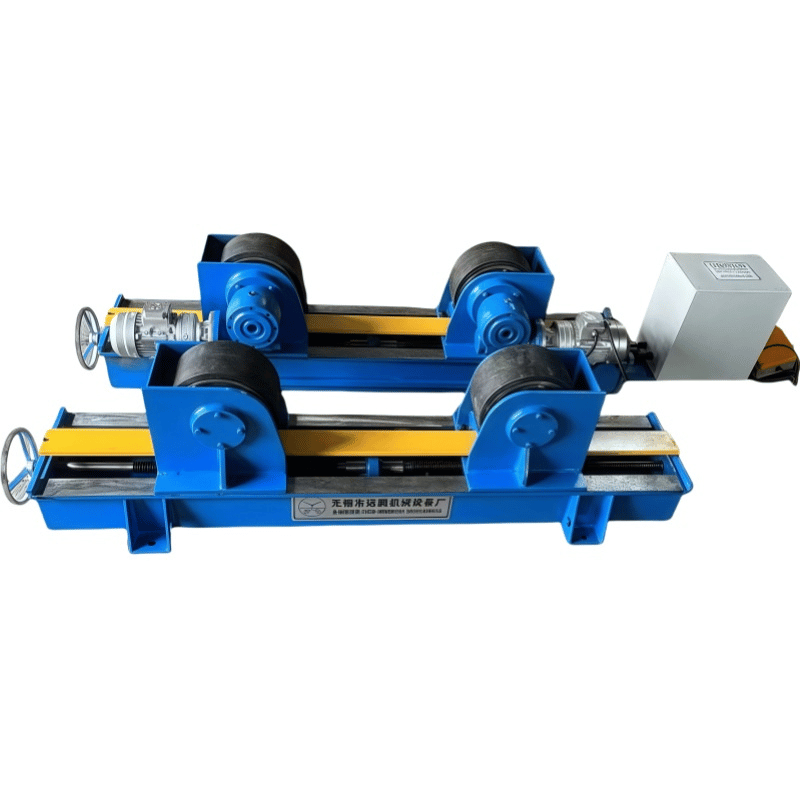

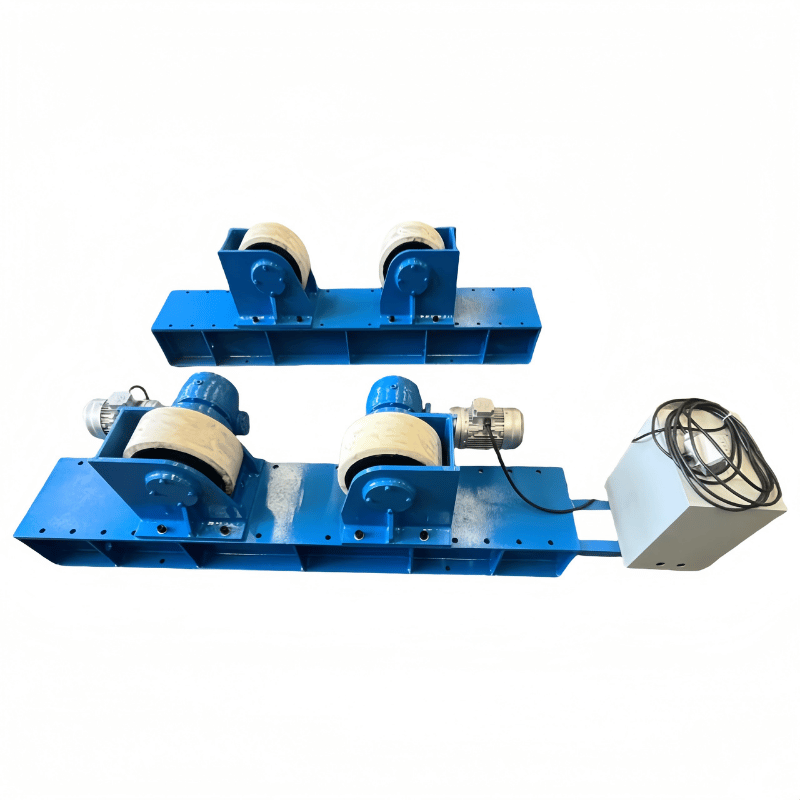

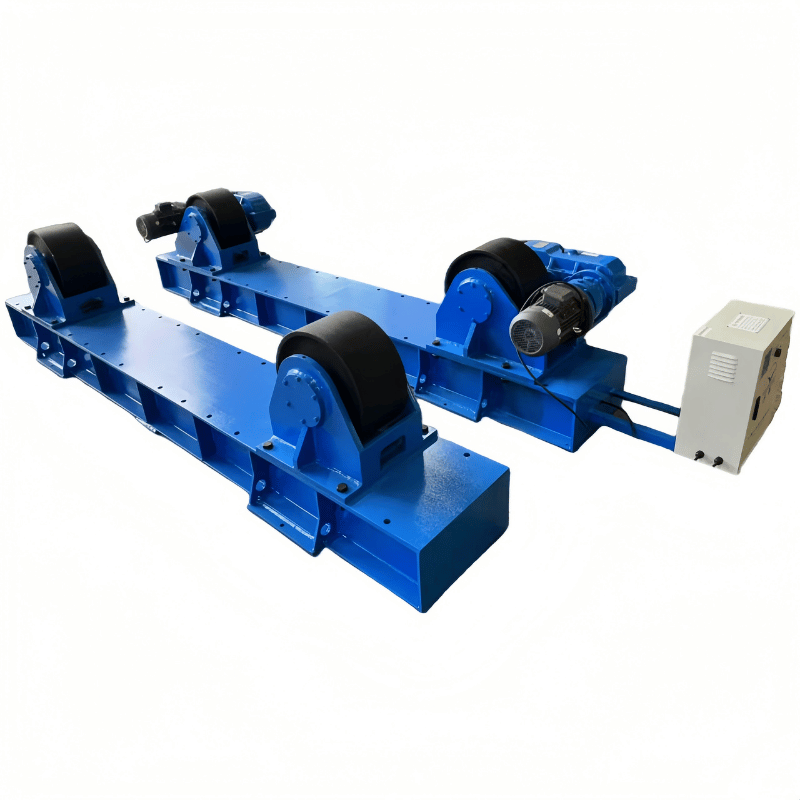

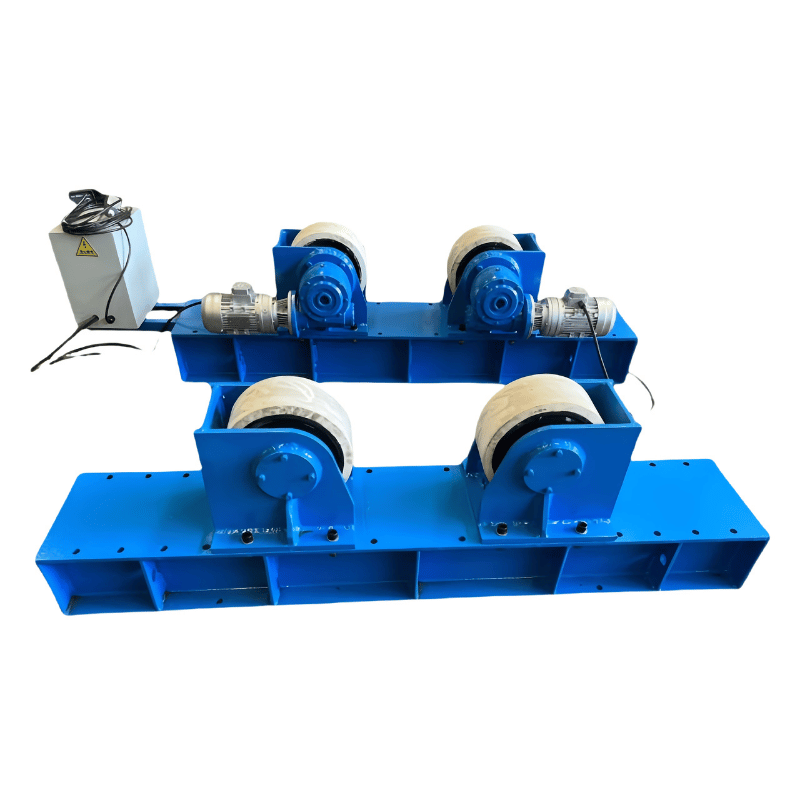

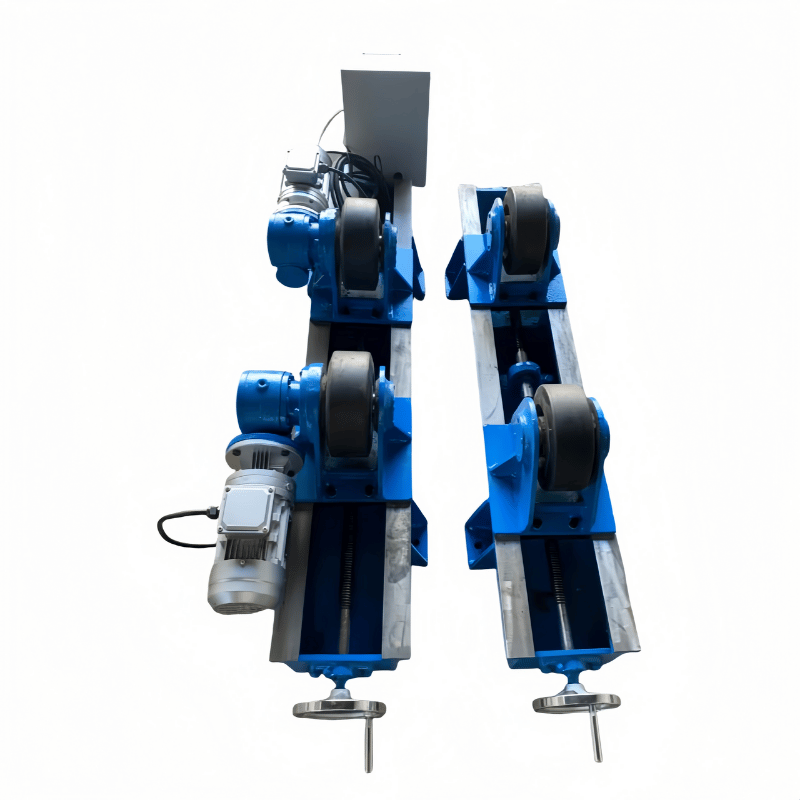

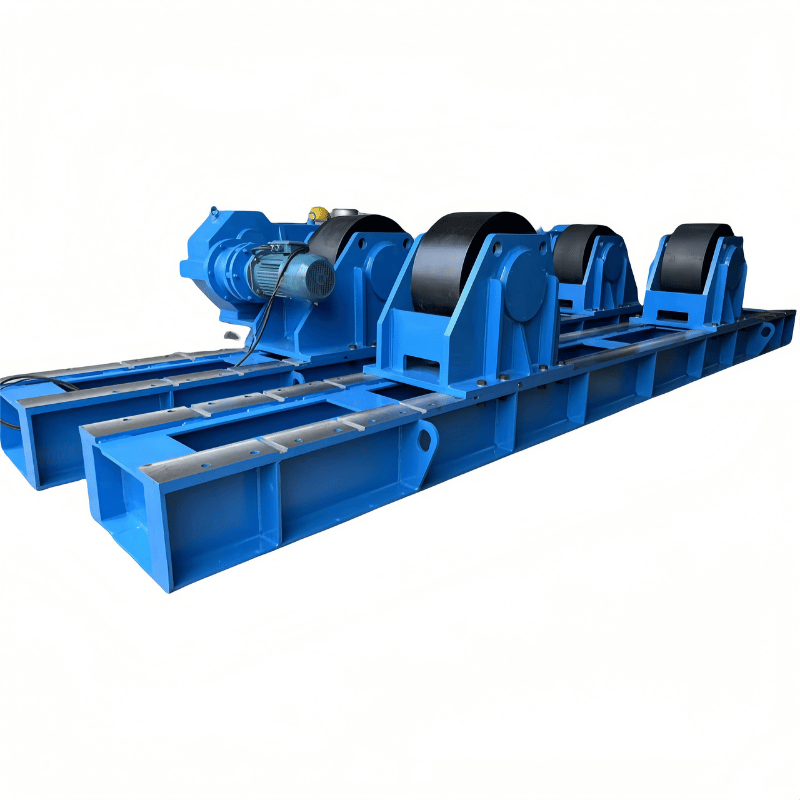

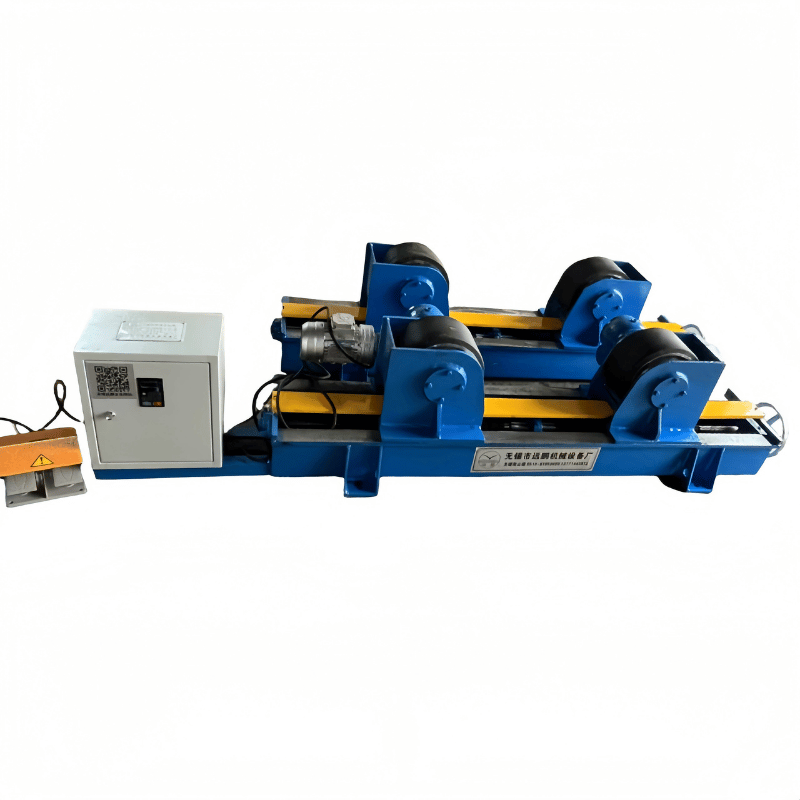

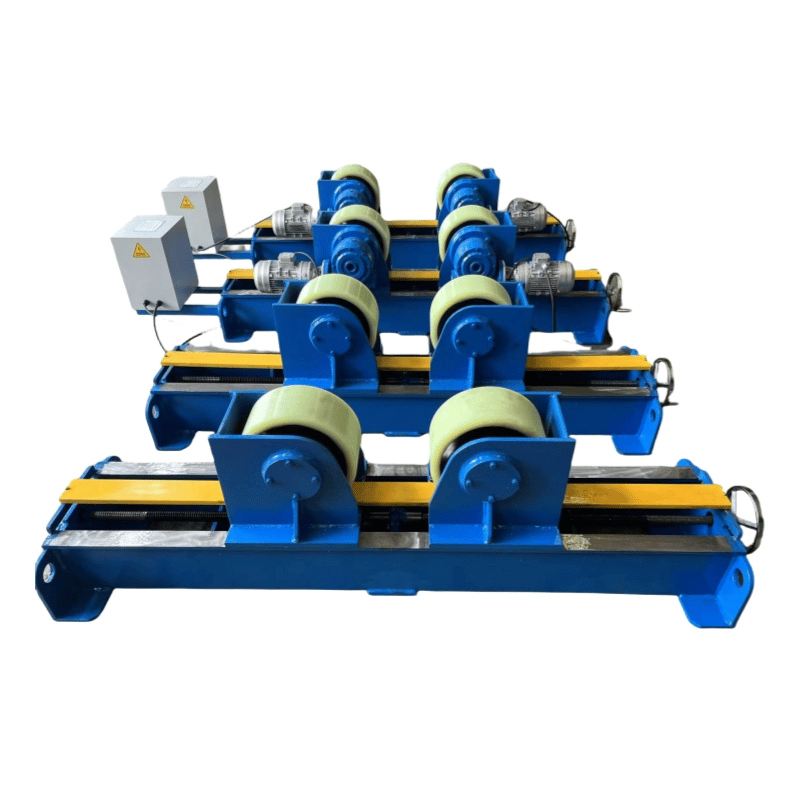

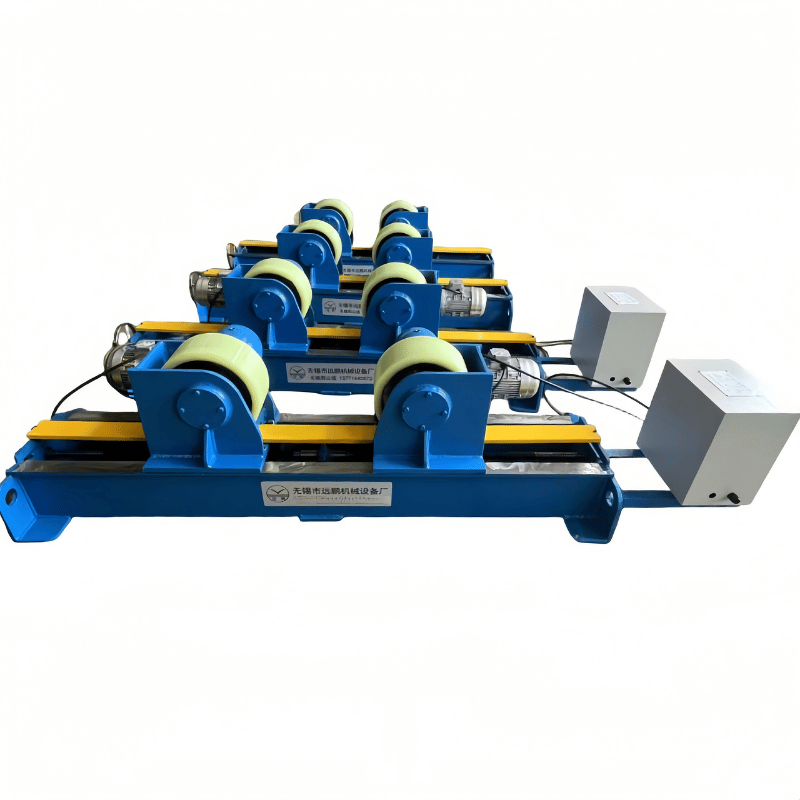

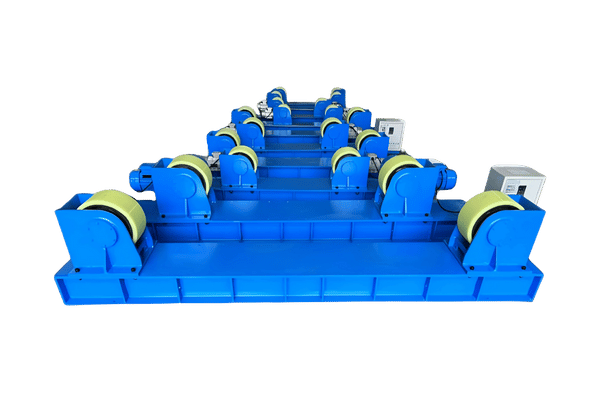

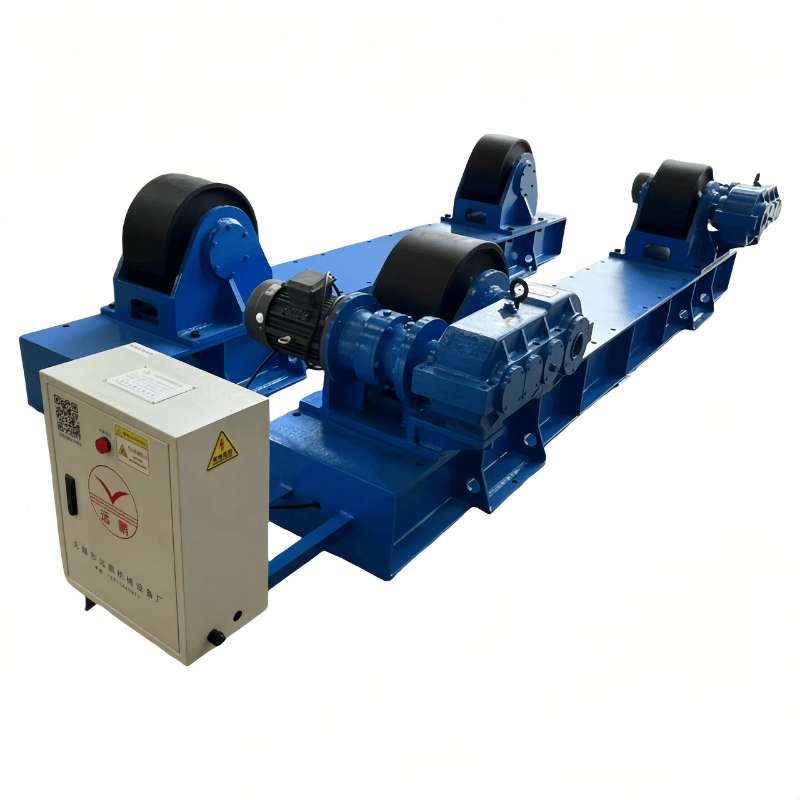

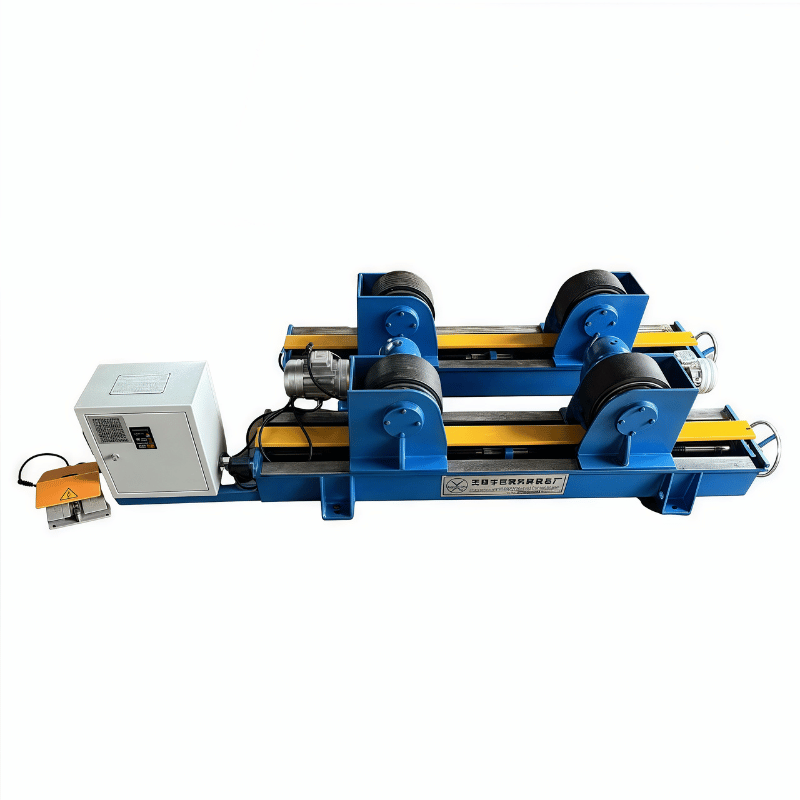

Conventional welding rotators offered by top Chinese manufacturers, RESIZE, can optimize reliability and productivity in your welding operations. These rotators precisely and smoothly handle the rotation of pipes, tanks, and pressure vessels during the welding process while providing seamless rotation, outstanding weld integrity, and remarkable stability.

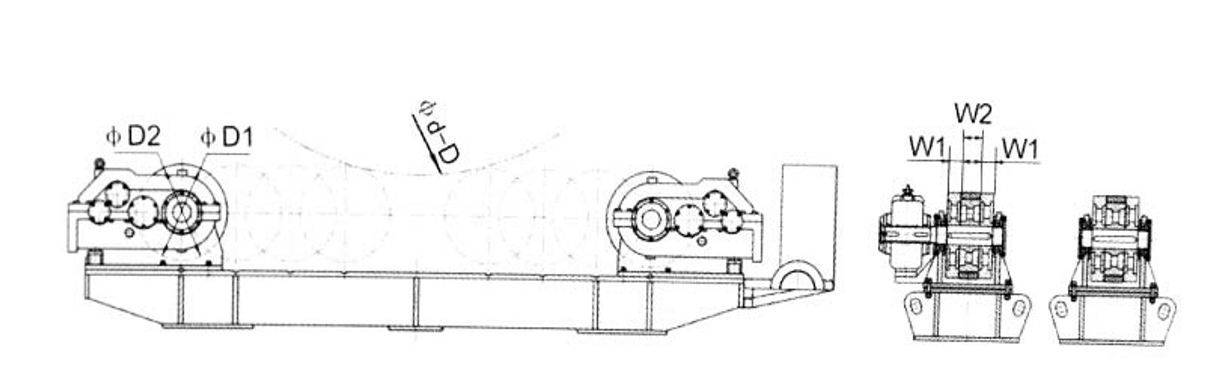

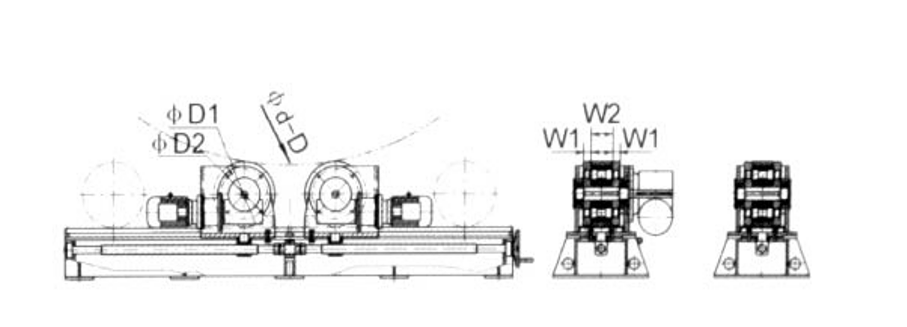

| Model | Loading Capacity (T) | Metal Roller | PU/Rubber Roller | Workpiece Diameter | Motor power(kw) | Linear speed (m/h) | Speed Adjust Mode | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm) | Width (mm) | Diameter (mm) | Width (mm) | Minimum (mm) | Maximum (mm) | |||||
| HGK-2 | 2 | / | / | Ø200 | 80 | Ø150 | Ø2000 | 2*0.18 | 6-60 m/h | Ac frequency conversion stepless |
| HGK-5 | 5 | Ø244 | 20 | Ø250 | 100 | Ø250 | Ø2500 | 2*0.37 | 6-60 m/h | |
| HGK-10 | 10 | Ø294 | 25 | Ø300 | 120 | Ø300 | Ø3200 | 2*0.55 | 6-60 m/h | |
| HGK-20 | 20 | Ø344 | 40 | Ø350 | 120 | Ø450 | Ø4500 | 2*1.1 | 6-60 m/h | |
| HGK-40 | 40 | Ø394 | 50 | Ø400 | 120 | Ø500 | Ø5000 | 2*1.5 | 6-60 m/h | |
| HGK-60 | 60 | Ø444 | 50 | Ø450 | 120 | Ø500 | Ø5000 | 2*2.2 | 6-60 m/h | |
| HGK-80 | 80 | Ø494 | 60 | Ø500 | 120 | Ø800 | Ø6000 | 2*3 | 6-60 m/h | |
| HGK-100 | 100 | Ø494 | 80 | Ø500 | 120 | Ø800 | Ø6000 | 2*3 | 6-60 m/h | |
| HGK-100 | 100 | Ø500 | 200 | / | / | Ø800 | Ø6000 | 2*3 | 6-60 m/h | |
| HGK-160 | 160 | Ø600 | 200 | / | / | Ø800 | Ø6000 | 2*4 | 6-60 m/h | |
| HGK-200 | 200 | Ø700 | 250 | / | / | Ø800 | Ø6500 | 2*4 | 6-60 m/h | |
| HGK-250 | 250 | Ø700 | 250 | / | / | Ø800 | Ø6500 | 2*5.5 | 6-60 m/h | |
| HGK-300 | 300 | Ø800 | 300 | / | / | Ø800 | Ø6500 | 2*5.5 | 6-60 m/h | |
| HGK-500 | 500 | Ø800 | 350 | / | / | Ø1000 | Ø8000 | 2*7.5 | 6-60 m/h | |
| HGK-800 | 800 | Ø900 | 400 | / | / | Ø1000 | Ø8000 | 2*11 | 6-60 m/h | |
| HGK-1200 | 1200 | Ø1000 | 480 | / | / | Ø1000 | Ø8000 | 2*15 | 6-60 m/h | |
| Other Model | Support customization according to customer needs |
Pipe rolls and welding rotators are integral welding apparatuses engineered to deliver both precision and operational efficiency, alleviating the physical strain of manual handling while simultaneously bolstering workplace safety across diverse industrial settings.
