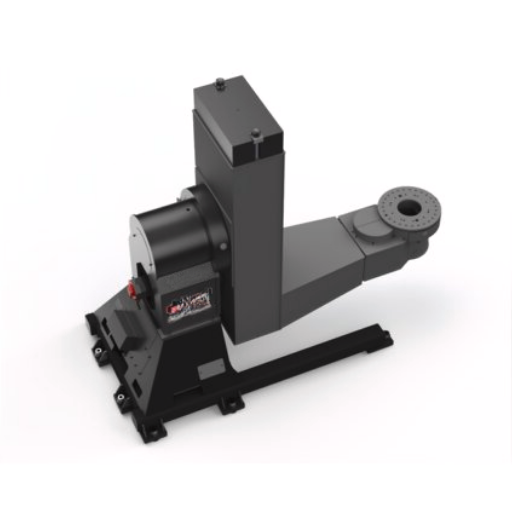

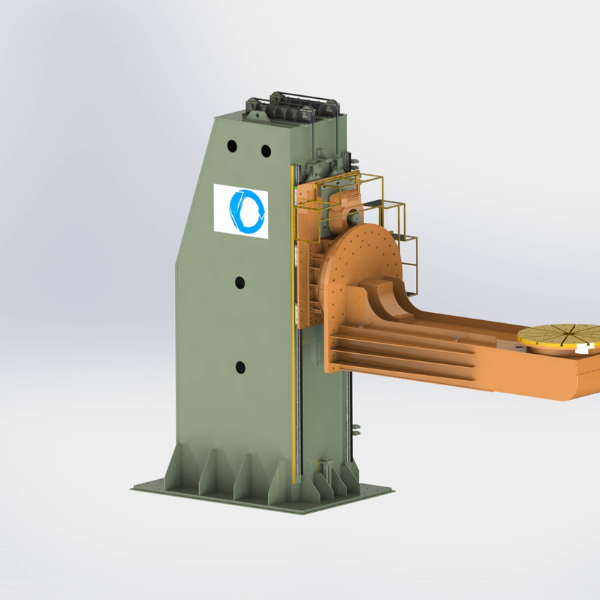

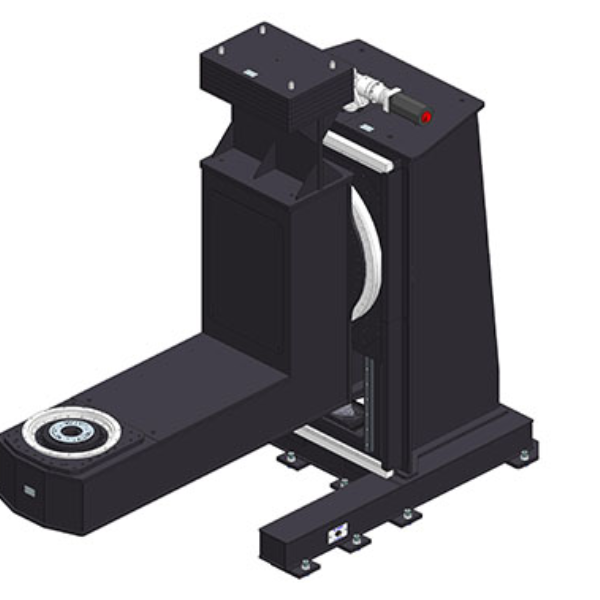

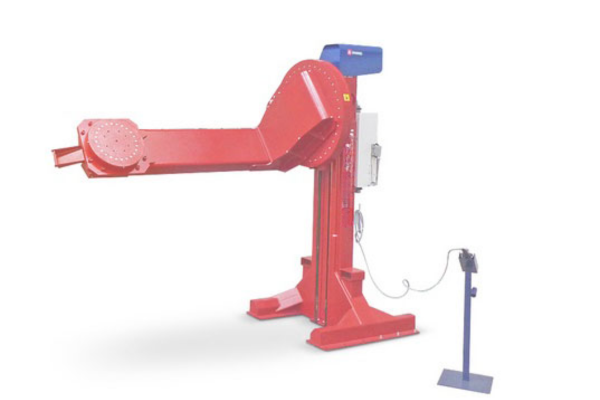

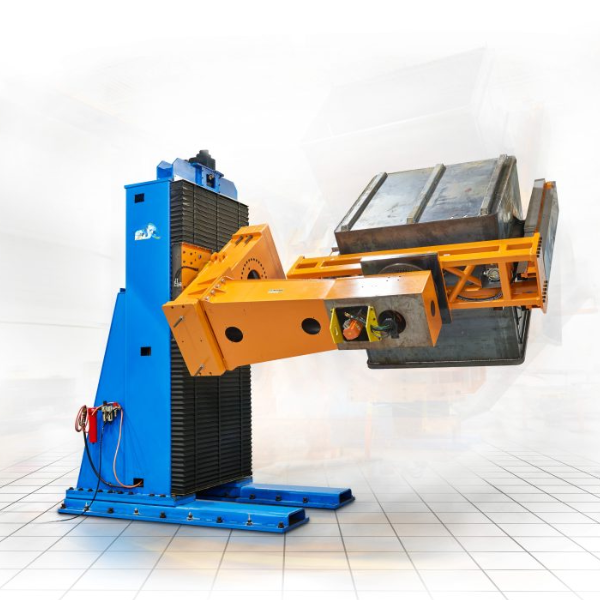

Skyhook positioner (also known as L-type hanging welding positioner) is a robotic 2-axis / 3-axis synchronized welding positioning device. Featuring a cantilever suspended workpiece structure, it provides full accessibility to bottom, back and inner weld seams without base interference. Widely used for engineering machinery frames, box structures, vehicle chassis and robotic welding cell automation.
| Feature | Specification |
|---|---|
| Rated Load Capacity | 500 kg–10,000 kg (customizable) |
| Allowable Eccentricity | ≤200 mm |
| Working Axis | 2-axis: 360° Table Rotation + ±180° Arm Tilt; 3-axis: 360° Rotation + ±180° Tilt + Vertical Hydraulic Lifting |
| Drive System | Full servo motor + precision planetary reducer (standard); hydraulic cylinder for lifting axis |
| Rotation Speed | 0.05–1.0 rpm, infinitely variable speed |
| Tilt Speed | 0.1–0.8 rpm, smooth and stable operation |
| Positioning Repeat Accuracy | ±0.05°–±0.1° (servo synchronized) |
| Control Mode | Hand pendant + PLC + HMI touch screen |
| Communication Interface | Support 485 / Ethernet, compatible with robot linkage |
Automatic robotic welding cell, construction machinery frames, agricultural equipment, pressure vessel structural parts, vehicle chassis, steel box beam fabrication.
