Leading Welding Rotator Manufacturers and Suppliers in China
- Adjustable Welding Rotator
- Self-Aligning Welding Rotator Available
Enhance Your Weld with Our Reliable Welding Rotators
- VFD Speed Control: With Variable Frequency Drive systems, speed is adjustable from 0.1-1 RPM, thus providing flawless welding for different materials and thicknesses.
- Advanced Safety: VFD Speed Control enhances the operator and equipment safety with emergency stops, overload protection, and a built in safety margin of 3:1.
- Self-Aligning Design: In regard to positioning a workpiece, automatic alignment optimizes setup time and weld consistency.
수천 개의 기업이 신뢰합니다
더 15,000 회사 & 파트너 신뢰 & RESIZE
더 빠른 프로젝트 완료
0
%
더 나은 용접 정확도
0
%
물리적 긴장 감소
0
%
Facing Challenges in the Welding Process?
70% of welders struggle with these same issues daily.
Handling Heavy Materials
Moving large and heavy workpieces takes a high degree of skill. In the absence of proper tools, weld quality suffers, resulting in wasted resources and time.
Safety Risks in Manual Welding
Manual handling of large workpieces poses a range of hazards to operators, such as ergonomic strain, heat, and elbow grease, lowering safety and productivity.
Inconsistent Weld Quality
An absence of support systems results in lopsided welds and wastage of materials, leading to inefficient operations.
Time-Consuming Processes
Without the right equipment, frameworks and structures lead to delays, deadlines not being met, and lesser profits.
Key Features of Our Welding Rotators
Check out our welding rotators, which are built to last and made with safety as a priority. Great for increasing productivity in a welding job.
Self-Aligning Efficiency
Automatically fine-tune to the size of the workpiece, minimizing manual adjustments and increasing accuracy.
Adjustable Speed Control
Rotating at customizable speeds ensures precise weld quality, enhances production efficiency, and quality for the end user.
높은 부하 용량
Greater efficiency and safety while manipulating secured heavy materials.
내구성 있는 구조
Designed to withstand tough conditions, reducing maintenance and replacement costs.
Versatile Integration
Compatible with MIG, TIG, and automated systems, enhancing flexibility for various uses.
Compact Design
Offering reliability, these devices take up less space and energy, which lowers costs while still improving performance.
How do I choose the right Welding Rotator model?
- Load Capacity: Identify the maximum possible weight of your workpiece.
- Material Dimensions: Check the rotator’s length and diameter against your materials to ensure size compatibility.
- Rotation Speed: Consider project needs in terms of accuracy and flexibility to precision metrics.
- Application Compatibility: Pick a model that caters to the specific welding process you intend to use, be it MIG, TIG, or automated systems.
Do Welding Rotators Need Regular Maintenance?
Even though Welding Rotators are designed to last long, regular checks are needed to provide the best results.
- Fastener tightening and checking
- Cleaning the electrical parts
- Applying lubricant to the mobile parts according to the user manual.
Best Welding Rotator for Sale
Make your welding projects easier and more efficient with our top-quality equipment. 🔥

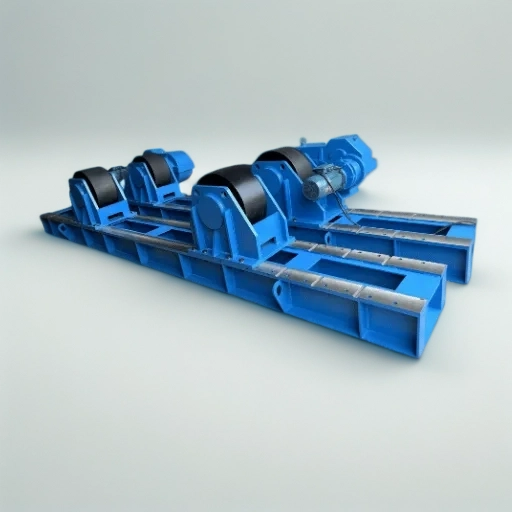

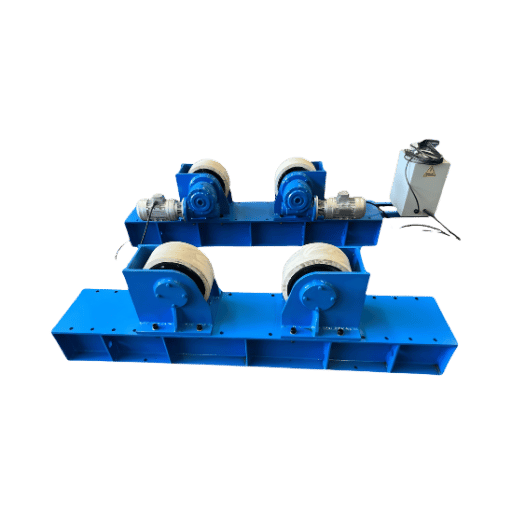

기존 용접 회전 장치
Conventional Welding Rotators are made to facilitate the welding of cylindrical vessels like tanks, pipes and pressure vessels. They improve accuracy, decrease physical labor, and increase safety by securely rotating large workpieces during the welding process.
$3000 - $60000/ Per Set

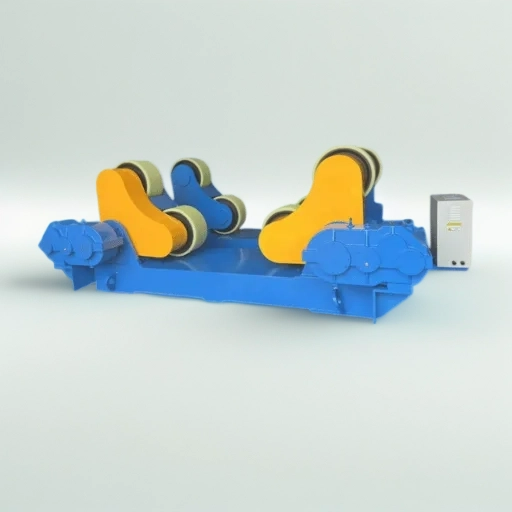

자동 정렬 용접 회전 장치
Self-aligning welding rotators are sophisticated equipment used for automatic adjustment to the diameter of the workpiece, maintaining precise alignment and rotation during the welding process. They optimize performance, safety, and the quality of welds in heavy industrial applications.
$3680 - $75000/ Per Set

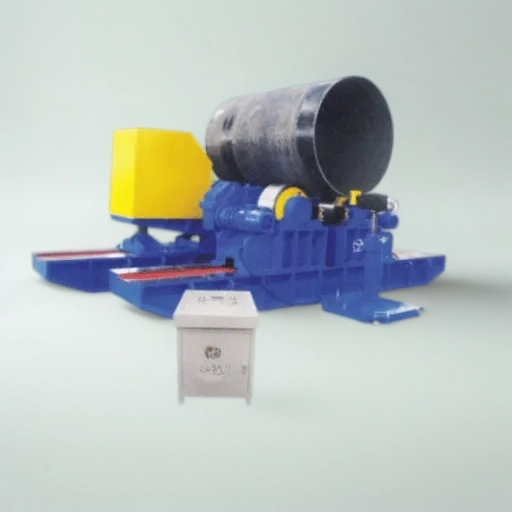

드리프트 방지 터닝 롤
Anti-drift turning rolls are sophisticated machinery that stop cylindrical workpieces from moving sideways while spinning. They provide accurate alignment and stability which is important during welding, painting, or inspection tasks.
$10000 - $50000/ Per Set

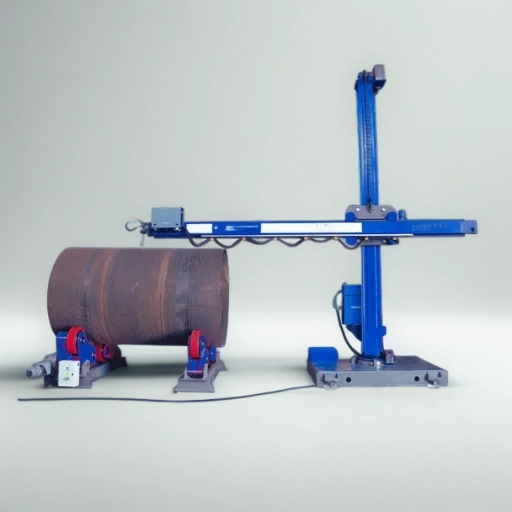

Tank Fit Up Turning Rolls
Tank Fit-Up Rolls focuses on stabilizing large cylindrical tanks as well as aligning them while welding and assembling. The rolls are made to ensure precision while efficiency increases.
$10000 - $100000/ Per Set

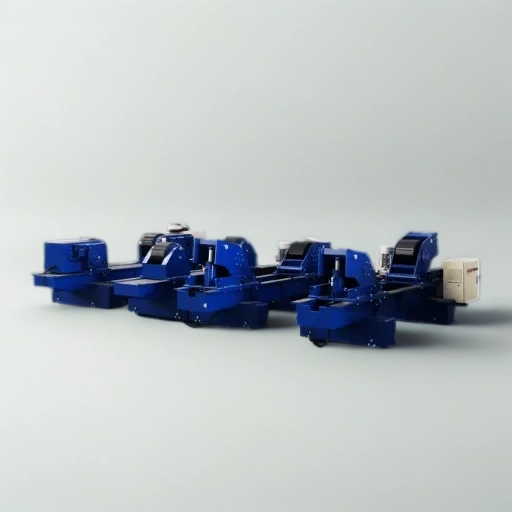

로테이터를 장착하세요
With Fit-Up Rotators, the accuracy of welding is achieved, manual labor is minimized, and efficiency is improved within heavy fabrication workflows.
$3000 - $30000/ Per Set

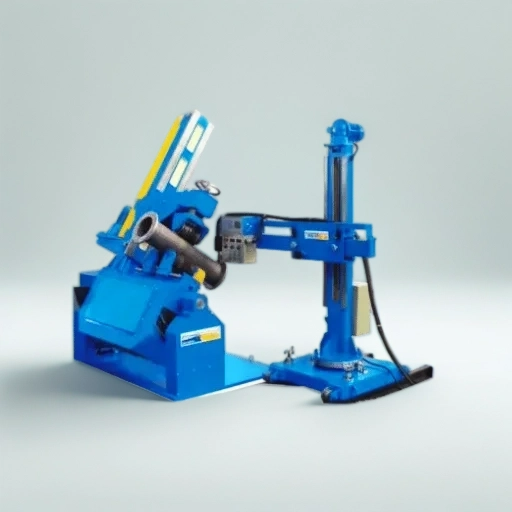

파이프 틸팅 로테이터
Pipe Tilting Rotators are multifunctional equipment available for the clamping, rotation, and tilting of pipes during welding, painting, or assembly.
$3000 - $20000/ Per Set
Get the Answers You Need About Welding Rotators

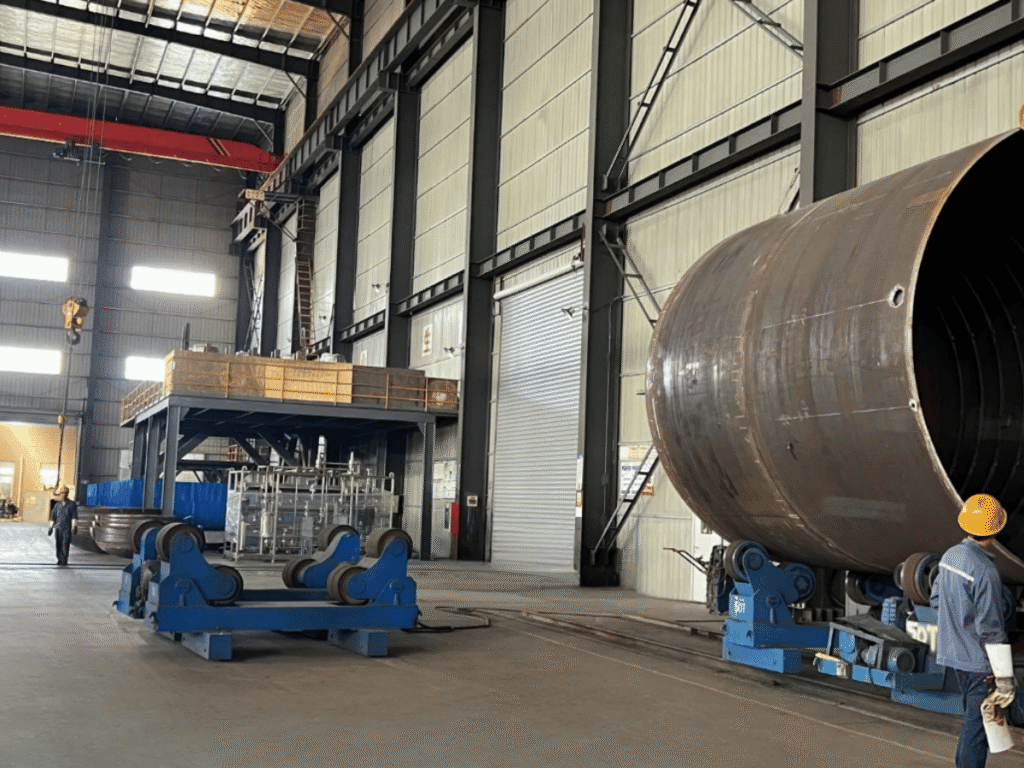

용접 회전 장치 란 무엇이며 어떻게 작동합니까?
- A welder rotator is a specific device used to turn cylindrical items over during welding. It ensures even application of the welds by allowing the workpiece to be positioned in the optimal angle.
- The welding rotator has a drive unit, rollers, or wheels that support the workpiece and turn it with accurate and constant precision.

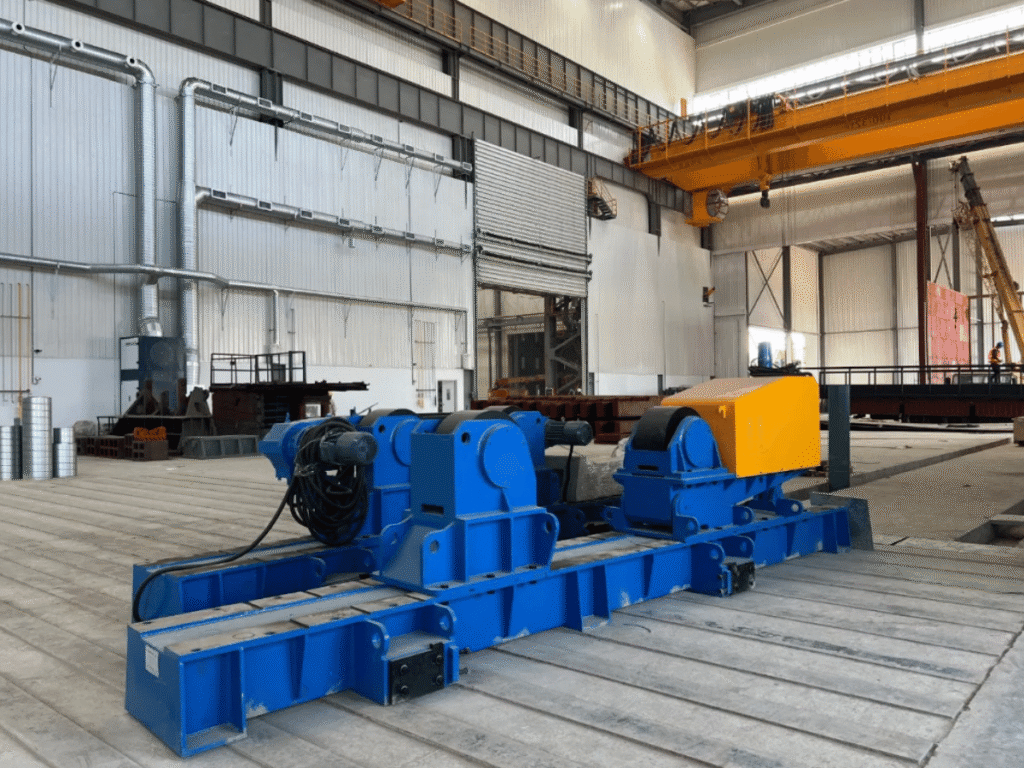

What welding processes can be performed with rotators?
- MIG Welding: Best for quick welding processes and widely used on aluminum and steel.
- TIG Welding: Famed for accuracy and cleanliness in welding; used mostly for thin sections and detailed work.
- Submerged Arc Welding (SAW): Used in heavy industrial applications where penetrating and high-quality welds are critical.

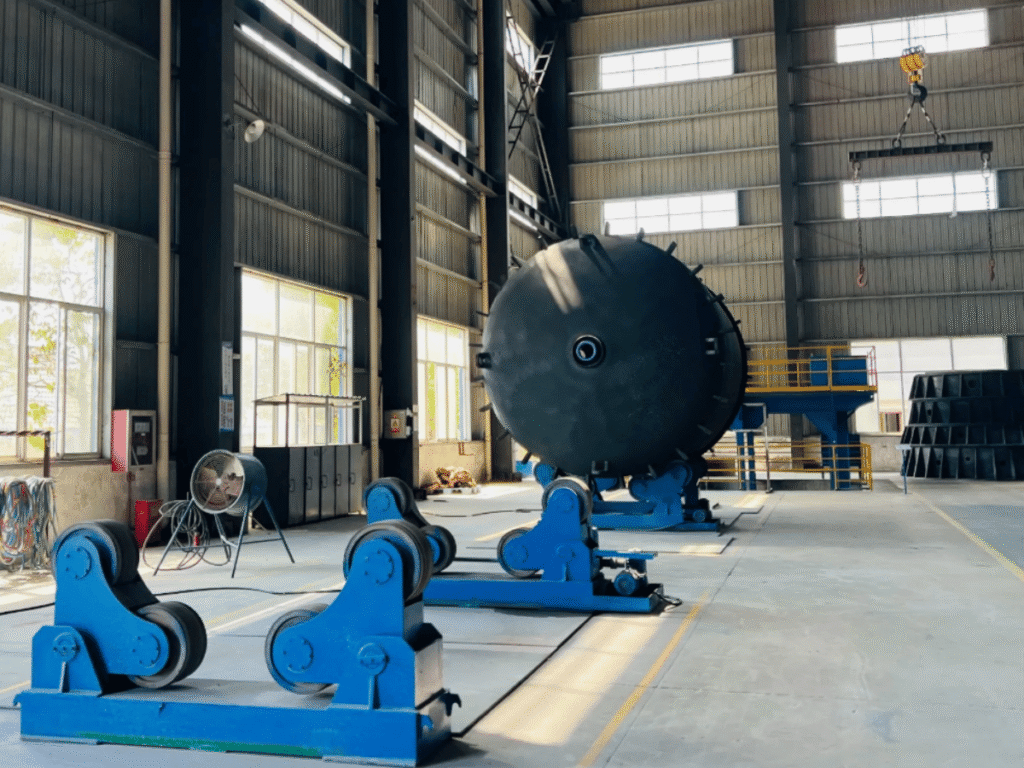

기존 회전 장치는 자체 정렬 회전 장치와 어떻게 다릅니까?
Unlike self-aligning rotators, conventional ones use rigid mechanisms which require manual setting for each individual workpiece diameter. With multiple workpieces of different sizes, Self-aligning rotators are far more efficient and user-friendly as welding can be done without the need for painstaking manual adjustment.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Safety Features and Certifications of RESIZE Welding Rotators
ISO 9001
품질 관리
CE 인증
유럽 규정 준수
ANSI 표준
안전 규정 준수
ISO 45001
Safety Management

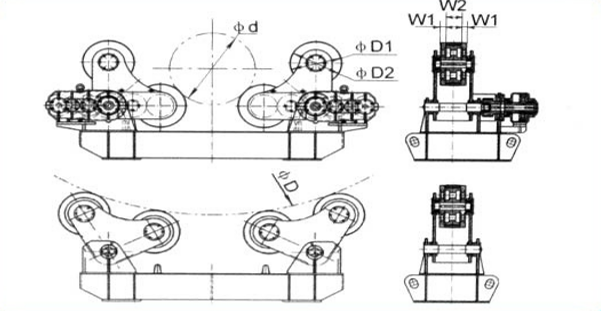

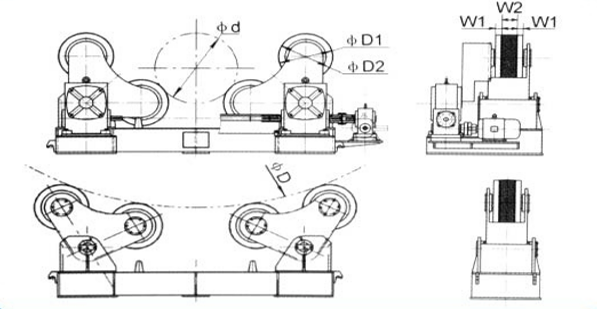

Diagram of the Rotator for Welding
Welding Rotator Technical Specifications
| 유형 | HGZ-5 | HGZ-10 | HGZ-20 | HGZ-40 | HGZ-60 | HGZ-80 | HGZ-100 | HGZ-150 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Max load weight(t) | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | ||
| Roller assembly | Metallic | Diameter D1(mm) | 244 | 294 | 344 | 394 | 444 | 494 | 494 | 494 |
| Width W1(mm) | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 80 | ||
| Rubber | Diameter D2(mm) | 250 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Width w2(mm) | 100 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | ||
| Cylinder D. | Man.d(mm) | 250 | 320 | 500 | 600 | 750 | 850 | 1000 | 1000 | |
| Man.D(dd) | 2500 | 3200 | 3800 | 4500 | 5000 | 55000 | 6300 | 6300 | ||
| Roller linear speed(m/h) | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | ||
| Motor power | Single driver(kw) | 0.75 | 1.1 | 1.5 | 3 | 4 | 4 | 5.5 | 7.5 | |
| Dual-drive(kw) | / | / | / | 2*1.5 | 2*2.2 | 2*3 | 2*3 | 2*4 | ||
| way of setting | AC frequency conversion stepless inverter speed regulation |
우리가 봉사하는 산업
Common Applications for Welding Pipe Rotator
Why Choose Our Welding Rotator Machine
- Superior Quality & Certifications: Industrial-grade rotators with CE certification and ISO 9001 quality standards guarantee safety and performance dependability even in harsh environments.
- Expert Technical Support: Get 24/7 certified engineer support that includes training, maintenance, and remote diagnostics to ensure smooth operations.
- Customization: Personalized automation systems concerning specific requirements for load capacities and wheel coatings are available.
- 20+ Years Industry Experience: We are helping our clients succeed by delivering over 5,000 units internationally.
- Mass production, factory direct with competitive prices.
고객이 말하는 것
Genuine responses from industrial users to our Weld Rotators
Best in class build quality and reliability. We've used three units for wind tower fabrication for more than two years without any downtime. A great return on investment for our operation.
사라 첸
Production Manager
The safety systems stand out as quite remarkable, as does the self-aligning feature. Our welders now feel more confident, the steady positioning eliminates rework, and tech support is outstanding.
Robert Brown
Operations Director
Expert Guides to Welding Turning Roll

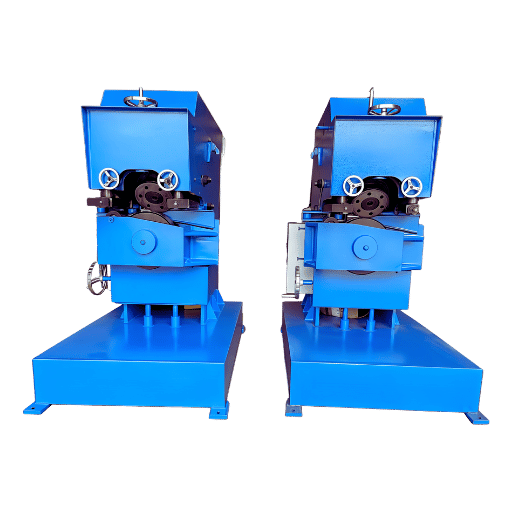

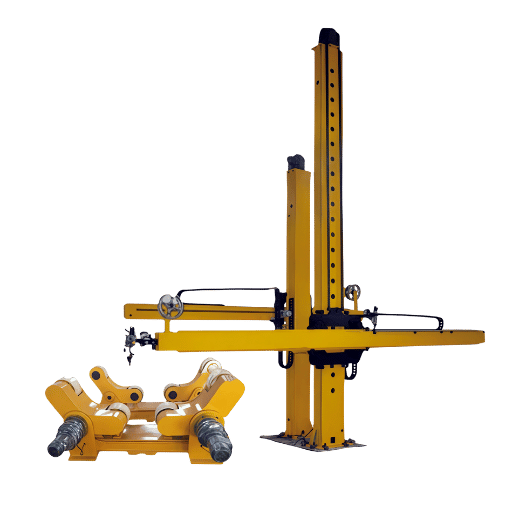

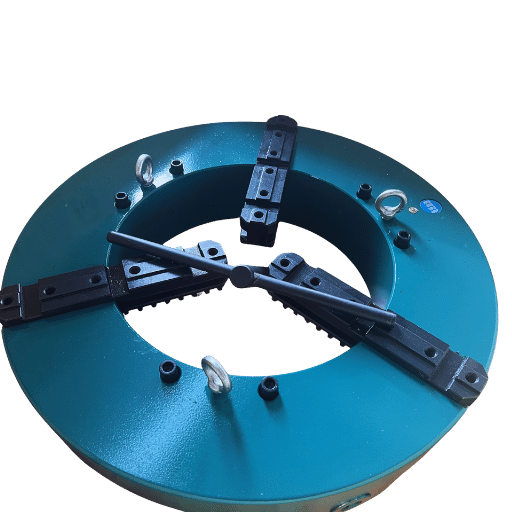

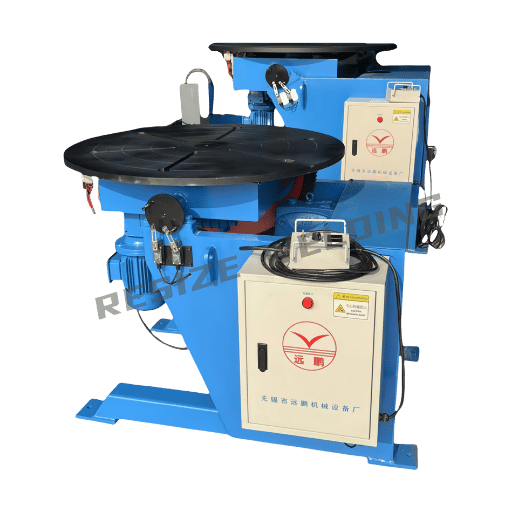

RESIZE Company 에서 제공하는 관련 장비
Latest Blog Posts about Welding Rotator
Check out newest blog entries regarding welding rotators, with tips, insights, and strategies that will improve your welding projects.
용접은 많은 산업의 기본 프로세스로 서 있으며,그 안에서 만족스러운 제품 품질을 산출하기 위해 최고의 정밀도,일관성 및 효율성을 요구합니다. 경험에 따르면 회의시 어려움이 발생합니다...
2025 년에 주목해야 할 최고의 용접 회전 장치 제조업체 상위 15 개 (업데이트 된 목록) 빠른 개요: 용접 회전 장치는 다양한 산업 운영에 필수적인 장비로 추가 된 효율성과 정확성을 제공합니다...
용접 분야는 정밀도,효율성, 혁신이 특징이며 용접 회전 장치 및 용접 조작기가 핵심입니다. 거대한 원통형 물품 제작에서부터 무거운 파이프 및 복잡한 것까지...
낮은 굽힘 손실로 널리 알려진 Delau 렌즈는 지난 몇 년 동안 크게 발전하여 비전 광학 장치의 최고 선택이 되었습니다. 그러나,비록...
파이프 용접은 극도의 정밀도,효율성 및 안전성을 요구합니다. 파이프 회전기,용접 롤러 또는 용접 회전기가 중장비 제작에 종사하는 산업의 비즈니스 이름이되었음을 인정합니다...
완벽한 용접 정렬은 항상 정밀도와 적시 작업 완료로 측정되는 성공을 결정하는 중요한 요소였습니다. 설계된 모든 제품 중에서...
핏업 공정은 약하고 불규칙한 접합부와 강력하고 흠잡을 데 없는 용접부를 분리하는 과정입니다. 용접 핏업, 재료를 정렬하고 결합하고 준비하는 중요한 단계입니다...
산업 활동 중에 생산되고 소비되는 용접에 관해서는 추상적이고 실용적인 개념을 모두 통합하여 경제적으로 증가하는 기술을 활용해야한다고 예상됩니다. 현재,...
Getting a quote for the Welding Rotator
With us, you can get a tailored welding rotator quote which helps you maximize productivity ROI. Our experts guide you according to your unique needs.
자주 묻는 질문
Q: What are the advantages of using self-aligning welding rotators?
- One of their main benefits is decreasing the possibility of misalignment by automatically adjusting to the workpiece’s diameter.
- This not only helps the quality of the welds but also saves time during the setup process.
Q: How can I ensure the precise operation of welding rotators?
A: Regular upkeep is necessary to keep welding rotators in proper working condition. This includes an inspection of the drive unit, checking of rollers and wheels for wear-track, as well as components alignment.
Q: What is the role of a track in self-aligning rotators?
A: A track is commonly utilized alongside self-aligning rotators to serve as a stable mounting base for the equipment. The track facilitates the movement and positioning of the rotator, which is necessary in maintaining the workpiece’s stability during welding.
Q: Can conventional rotators handle large workpieces?
A: Yes, conventional rotators can manage large workpieces, for example, heavy vessels and tanks. These rotators are built to bear considerable loads and rotate such items at controlled speeds to allow precise welding.
Q: Are there any safety concerns when using welding rotators?
A: Equipment-specific user training is imperative and should include workstation safety, secure fastening of workpieces, use of protective gear, and maintaining a clear workspace. Regular maintenance checks and inspections on the rotators.
Q: What features should I look for in a welding rotator?
A: While choosing a welding rotator, pay attention to elements like load capacity, speed control, and the drive system.
Q: Can multiple Welding Rotators be synchronized?
A: Absolutely, for tasks like managing long or oversized parts, multiple units can be synchronized. This setup also allows for simultaneous rotation which is crucial for consistency and stability during welding operations.
