If you’ve landed on a Profa× welding positioner for your shop, you’re probably tossing between models – WP-250 vs WP-1000, or debating whether the jump in price to the WP-500 is worth it. Below is the info the spec sheets aren’t providing: on a cost-per-lb of rated capacity basis, the WP-500 is the least economical model in the Profax lineup at $13.99/lb – 46% less economical than the WP-250 at $9.58/lb. That one statistic is enough to change the entire debate.
This review covers every Profax model currently on the market, with verified dealer pricing for 2025 direct from authorized dealers, specifications taken directly from Profax’s official pricing catalog, and comparisons drawn to Pandjiris, VEVOR, and factory-direct offerings. Whether you’re taking your first positioner plunge or replacing aging units on a production floor, these numbers will help clarify the decision.

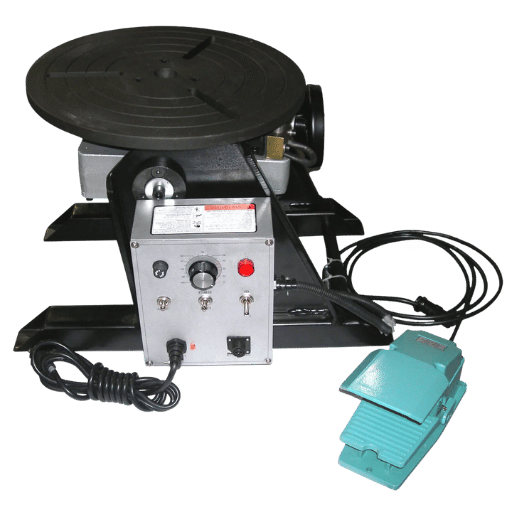

Profax Welding Positioner Specs at a Glance
Profax currently manufactures six positioner models in their WP series. The four most commonly purchased units are discussed below – WP-250, WP-500, WP-1000, and WP-6000 – with specs verified from the Profax-Lenco official catalog.
| Model | Vertical Cap. | Horizontal Cap. | Tilt Angle | Table Ø | Ground | Power | 2025 Price Range |
|---|---|---|---|---|---|---|---|
| WP-250 | 250 lb | 440 lb | 0–90° manual | 13¾” | 300A | 115V/230V | $2,395–$3,781 |
| WP-500 | 500 lb | 900 lb | 0–115° power⚠ | 19⅝” | 500A | 115V/230V | $6,995–$8,815 |
| WP-1000 | 1,000 lb | 1,750 lb* | 0–135° power | 24½” | 500A | 115V | $10,595–$13,551 |
| WP-6000 | 6,000 lb | 9,500 lb | 0–135° power | 47¼” | 800A | 460V 3PH | $49,949 |
⚠ WP-500 tilt limited to 115° — WP-1000 and WP-6000 tilt to 135°. *WP-1000 horizontal capacity: 1,750 lb at 4″ center of gravity; 1,000 lb at 6″ COG. Prices from authorized US distributors, verified May 2026.
All models are built with a high-frequency arc protection feature by default – a facet of operation that’s more critical than most buyer’s realize and will be discussed more thoroughly on the WP-250 review.

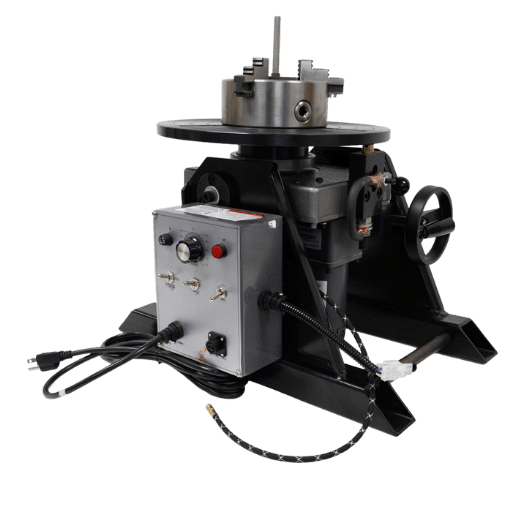

About Profax: 55+ Years of American-Made Positioning Equipment
Profax’s story started in 1969. What originated as a small machine shop located in Pearland, Texas, far from Angi’s influence, has now evolved into one of the best known names in US made welding equipment – still in the same Pearland location, now operating under the Profax-Lenco banner.
Purchasing power in one location does make a difference. When you call, you speak to someone in the very same building that your positioner was manufactured in. They advertise over 98% same-day shipping, and note that a significant portion of their staff have been with the company for over 20 years – the type of corporate stability and experience to guarantee product consistency and technical support.
Profax’s products are sold solely through selected authorized dealers. That wholesaler network involves a layer of distribution (arc-zone.com, Harris Welding Supplies, Weld Plus, and other vendors) that results in a markup that increases your final price by 40-60% over comparable factory direct models. This is not automatically a bad thing; this is entirely the tradeoff you take on when purchasing from an American factory with an active support network. Determining whether the additional fee is worthwhile will come down to the size of your operation and the specific models you compare, which I will highlight next.

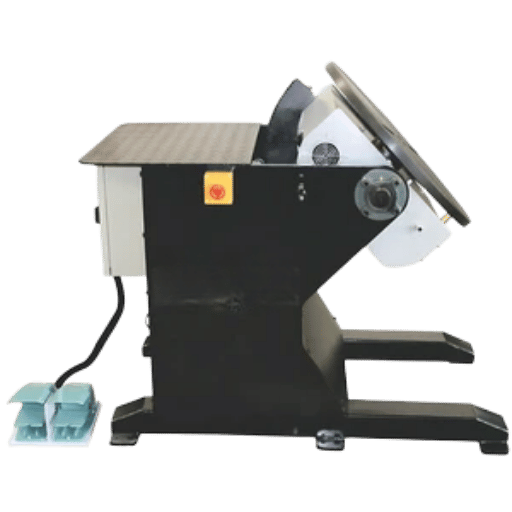

Full Profax Model Lineup: The Price-Per-Pound Analysis Nobody Publishes
Most positioner reviews will rate by rated capacity. However, this number is pretty meaningless. A more pragmatic valuation is one that measures cost-per-pound of rated capacity – how much you are paying for each additional pound of vertical lift.
Below is a guide to how the Profax line-up compares for current 2025 pricing from Harris Welding Supplies (one of the most aggressively priced American dealers):
| Model | Sale Price | Vertical Cap. | $/lb Capacity | Verdict |
|---|---|---|---|---|
| WP-250 | $2,395 | 250 lb | $9.58/lb | Good |
| WP-500 | $6,995 | 500 lb | $13.99/lb ↑ | Worst Value |
| WP-1000 | $10,595 | 1,000 lb | $10.60/lb | Better than WP-500 |
Why is the WP-500 46% more expensive/ pound of capacity than the WP-250?
Power tilt begins at WP-500 – a mechanismally more complicated drivetrain which costs unduly more compared to the capacity gain. If you want power tilt and your loads aren’t nearing a thousand pounds, the WP- 1000 will actually work out more economically per pound of capacity you purchase.
Another seemingly insignificant selection tip, since it is almost never mentioned on spec sheets: a positioner that is operated at its full rated capacity 100% of the time will wear out much sooner. Don Burgart, Welding Product Manager for Koike Aronson, states it more plainly in The Fabricator: A positioner loaded to it’s maximum capacity 100 percent of the time will have a reduced lifespan. Size up by 20–25% from your most over nigh regular load.
Check the welding positioner load capacity guide if you’re working out center-of-gravity calculations.
For reference, WP-6000 and WP-10000 territory is industrial production floor equipment – starting at $49,949, requiring 460V three-phase power. Not a decision factor for most small-to-mid shops, but both support Profax offering all the way from bench-top TIG work to structural fabrication at scale.
Profax WP-250 Review: The Shop Workhorse (With One Footnote)
Accumulative, most small shops and short run fabricators wind up with the WP-250. For 250 lb. vertical capacity (440 lb. horizontal), it has the capacity for the compbined practical pipe, bracket and clamp work most TIG, MIG shops do. By table size,(it’s 13″ ) takes the common 3-jaw chucks (Profax offers the WPC-6, and WPC-11 as bolt-on add-ons), and the 0.5-5.5( RPM range is quite wide for control of crawl speeds for TIG.
A YouTuber in an in-depth 13-minute hands-on of the WP-250 gave it an 8.5/10: “as far as the positioner it is very heavy duty — I recommend this…it’s about 100 lb, your material isn’t going anywhere”. The only common gripe among the user reviews: the plastic foot switch ships with small cosmetic cracks. It works, but some users replace it with a more durable, third-party foot pedal in a production floor environment.
Analog control a feature, not a drawback. RPM speed control on WP-250 is via an analog dial, not a digital readout. Many newer positioners on this shelf have digital displays for an additional $150-$200. feedback is more or less unanimous there: it’s a ripoff.
A user on WeldingWeb who specifically chose not to go with the digital upgrade sums it up thus: “the speed is really a trial/feel thing anyway and you can just as easily set it by the dial.” Most welders learn pretty quickly the RPMs for a given diameter after a few passes and then don’t need the number to work from.
HF protection is more important than most spec sheets suggest. Its standard on the WP-250 – and it sounds like a feature to check off when you order, until you see what happens without it. One WeldingWeb guy has pics of a dozen or so MK Cobra positioners that died inside a year: “one (or maybe two?) of them died within a year because the high frequency arc starter got into the electronics.” Profax’ brass grounding brush and HF-shielded circuitry are not just flattery for the spec sheet – they’re what keep the motor alive in a shop using a TIG welder with HF arc start.
✅ WP-250 Strengths
- Best price-per-pound in the lineup ($9.58/lb)
- 115V/230V dual voltage — runs anywhere
- Compact footprint fits benchtop or rolling stand
- High-frequency arc protection standard
- Ships same day from US stock
⚠ WP-250 Limitations
- Manual tilt only (no powered tilt like WP-500+)
- Single-direction foot pedal (not forward/reverse)
- 4″ max COG — asymmetric loads need careful setup

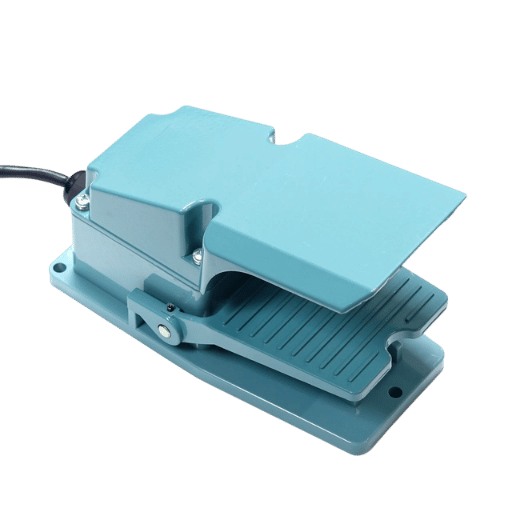

- Plastic foot switch reported as weak point
- No tilt angle indicator
For almost all the TIG pipe fab, structural part work under 300 lb, and custom fab shops, the WP-250 gets it done. If you’re frequently loading 300-440 lb or require powered tilt for complex geometry, that’s when you consider the WP-1000 – without step through the 500. To explore the entire rotary welding positioner class, including how the WP-250 (and the others) integrate into production cells, this context is necessary.

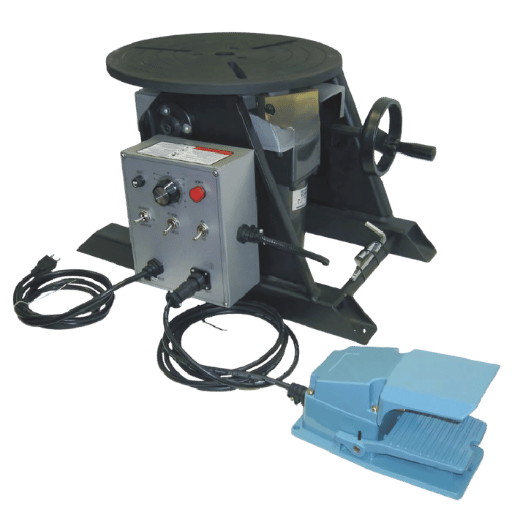

Profax WP-1000 Review: When the Price Jump Earns Its Keep
Purchasing a WP-1000, for $10,595-$13,551, isn’t quite in the same class as getting a WP-250 – it’s just a different horses for different courses kind of thing. Moving from the WP-250, you’ll get powered tilt 135, a 24″ table with 3&4-slot configuration for big fixturing, forward/reverse foot control (CFS-404), and a 500A grounding capacity. Submerged arc or high-Amperage MIG heavy structural assembly running? This 500A ground matters on a station though it doesn’t on paper.
Engineering Note: Understanding the WP-1000 Capacity Discrepancy
Distributors list the WP-1000 as both “1,000 lb” and “1,750 lb”; both are accurate, the number changes depending on the load center of gravity placement. 4″ COG from center and face of table: 1,750 lb horizontal. 6″ COG from face and center: 1,000 lb. Tank and pressure vessel end with one heavy side, heavy flange junction? Always see the lower figure. Expect 6″ COG unless your assemblies are significantly more compact than average.
1600 lb shipping weight and already shown on the shelf at the shop? This is a machine meant to sit on the floor – a good sign of its construction. Properly rated stand or base plate needed; 115 V 20A single phase outlet keeps it attainable without jumping to three phase. 0.2-2 RPM range is deliberately slower than the WP-250. Its 5.5 RPM top out is, in the weight loads encountered, faster than safe or supported.
WPC-20 for 20″ diam grid, WPG-22 gripper (OD 1″-15″, ID 4″-22″) optional chucks round out the WP-1000’s pipe welder positioner capabilities for medium diam pressure vessel / structural pipe. For application-specific sizing guidance, see the complete guide to choosing a positioner for pipe welding.
WP-1000 bottom line: If you’ll constantly be running 600-1,000 lb and you need powered tilt, the WP-1000 justifies it more than the WP-500. Avoid the WP-500 unless your tilt range is critical to maintaining the 500-900 lb horizontal capacity range and you cannot see spending the WP-1000s dollars.

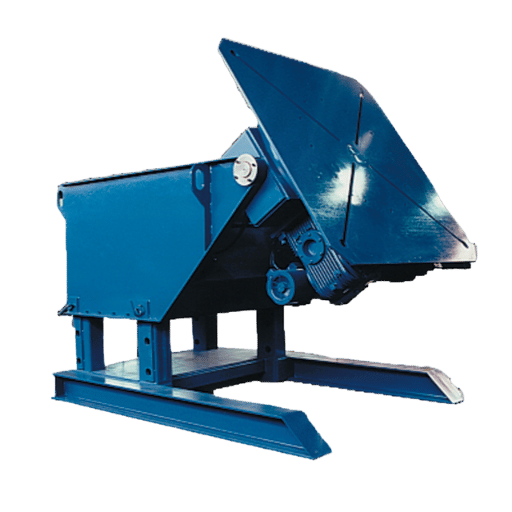

Profax vs. Alternatives: Pandjiris, VEVOR, and Factory-Direct Options
Profax sits firmly in the mid-to-upper tier of the welding positioner market — clearly above budget imports, and competitive with major US industrial brands. Here’s how it stacks up against the main 3 competition options that buyers usually consider:
| Factor | Profax WP-250 | Pandjiris Alpha 5-3 | VEVOR (30 kg) | RESIZE Factory-Direct |
|---|---|---|---|---|
| Capacity | 250/440 lb | 500 lb | 66 lb | 250–6,000 lb range |
| Tilt | 0–90° manual | 0–90° pinned | Fixed/limited | 0–135° power |
| 2025 Price | $2,395–$3,781 | Quote only | $210–$330 | ~40–60% below Profax |
| Made in | USA (Texas) | USA (St. Louis) | China | China (factory-direct) |
| HF Protected | ✓ Yes | ✓ Yes | ✗ No | ✓ Yes |
| Buy Online | ✓ Yes | ✗ Quote only | ✓ Yes | ✓ Yes |
VEVOR ($210–$330):Decent reviews from users in the real world.Profax budget type units are suitable for hobbyist light use or very light fabrication such as 30 kg/66 lb and under. One apparel fabricator summed it up conveniently when sourcing the $210 model: It’s crap, but for $200 I will use it on that job and sell it on Facebook. Not protected on high frequency start, has a limited load capacity and the motor quality will reflect the price paid. If you’re a TIG welder who uses HF arc start then don’t bother with one without high frequency protection.
Pandjiris (qty only): Shop us premium who high capacity needs 500 lb plus. No pricing published by Pandjiris – every model page asks you for a quote. This premium pricing indication alone makes it an uneasy fit for budget-conscious capital investment planning. The Alpha 5-3 (capacity 500 lb, similar to WP-500) carries a strong build quality track record (still in production 20+ years) however the lack of published prices makes it very difficult to factor both from a planning and budget management perspective. Check the welding positioner manufacturers comparison for a broader look at US and international brands in this category.

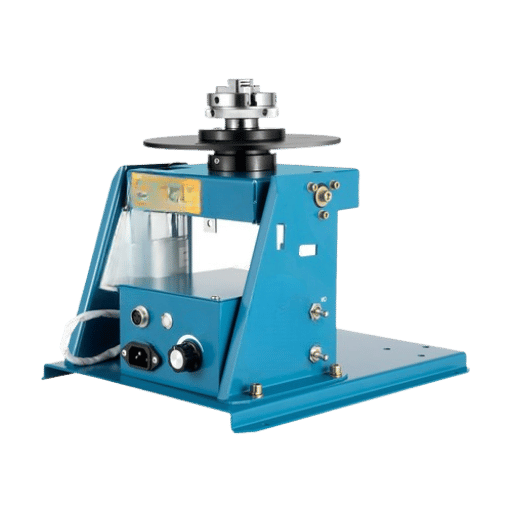

Where to Buy a Profax Welding Positioner (New and Used)
New — authorized US distributors:
- Factory direct options: For customers who find Profax’s $1000 plus entry point challenging to swallow (as can be demonstrated from above calculations!), RESIZE has a series of welding positioners which are factory-direct, eliminating the typical US distribution channel which can add 40-60% to the head cost of a given item. While this may mean a longer lead time compared to a Profax order and there will be a different service support structure, the potential cost savings can be significant (especially given the bumper pricing on the heavy-duty line). The WP-1000 capacity range aligns with the most capable heavy-duty welding positioner options at the factory-direct price point.
- Arc-Zone.com — Single largest range of Profax’s units (in stock), free delivery in the continental US. The full range of WP units plus shanks and grippers accessories.
- Harris Welding Supplies — Currently running a 6% discount below Profax list prices on WP-250 ($2,395), WP-500 ($6,995) and WP-1000 ($10,595). Free delivery on orders over $99.
Weld Plus — Stocks both new and used as well as reconditioned Profax positioners from a 44,000 sq ft warehouse. Good option if you want to inspect before buying or pick up a rebuilt unit at a discount.
Used and surplus: The used market for Profax positioners is reasonably active. Weld Plus carries rebuilt units. Surplus Record and Mohawk Machinery list used industrial positioners across brands (Pandjiris, Aronson, Ransome also appear regularly). eBay shows rotary weld positioners in the $290–$660 range, though these are typically lower-capacity units.
When purchasing a preowned positioner, always check the condition of your ground brush, test the smoothness of rotation at an idle RPM level and double check the HF high frequency protection is working. Even a well serviced unit which has been used maximally at peak capacity may have had worn gears that sit outside visual inspection parameters; the lifespan caveat mentioned above applies here.
International buyers: Profax distributes through local providers worldwide. Price in non-US worldwide should incorporate logistics, import taxes (where applicable), forwarder, and local distributor margins. Usually the best choice for international buyers is to consider factory-direct pricing from a manufacturer who can deliver an in-stock unit built to your local interface voltage. Profax WP-250 at 115V/230V has some flexibility but the WP-1000 is 115V only.

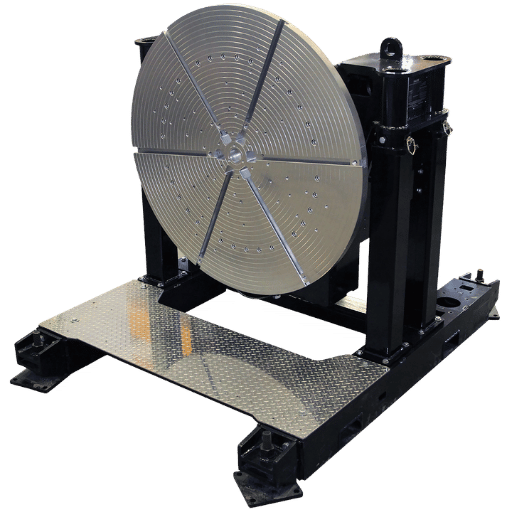

Why “Pipe Welding Positioner” Searches Jumped 243% in 2025
Google search data shows a 243% year-over-year increase in “pipe welding positioner” searches, from ~140 in May to 480 by October. That is not an anomaly or a statistical fluke — it’s real investment in infrastructure.
4 types of infrastructure are currently expanding in North America: US oil and natural gas pipeline infrastructure – a $52.5 billion dollar market in 2044 that is estimated to expand to $99 billion by 2032 (total compounded 8.4% CAGR). While a boost in gas fields and refineries also might be cited, the expansion of naturally gas distribution pipelines is quite visible in profitability and is The market. Additionally, increased investment at the scale of LNG terminals expansion – a proven growth trend cited in Deloitte’s 2026 Oil and Gas Industry Outlook. Despite the decade high cost of logistics, the average LNG terminal investment is planned around the $70 billion dollar level. The most additional welding accuracy is needed in pipelines and especially LCO2 or LNG distribution terminals, which feature a massive throughput at a much higher pressure, where pin-point accuracy for long durations is required. You can not get this natural gas pipeline in a mass production environment without a rotating positioner.
A new 2025 version of AWS D1.1/D1.1M:2025 was recently issued and, among other things -relates to updated requirements for the weld position for pipe welding: 1GR -(rotated), 2G, 5G, and 6G. Operating Position 1GR directly discusses the practice of rotating your work piece during the weld rather than simply re- orienting the piloting rectifier position, the practice supported and required by a nice, inexpensive, powered rotating work positioner.
Shops pursuing D1.1/ 1D.1M:2025 compliance find that a qualified pipe welding positioner becomes the most reliable power choice for consistency in 1UR production welds.
Evaluating a pipe welding positioner for pipeline and pressure vessel work, shops will find the WP-1000 with WPG-22 gripper handles OD 1″15″ steel pipe for most common fabrication size diameter ranges. For full spec guidance for pipeline work, download the ultimate guide to pipe welding positioners.
Frequently Asked Questions
Capacity-Budget Decision Summary
- Loads under 250 lb on a tight budget → go with the WP-250 at $2,395, the best value in the lineup
- 250-500 lb, must have power tilt. Skip the WP-500 and look into the WP-1000 if within your budget or factory-direct 500 lb alternatives.
- Horizontal compressive loads of 1750 lb WP-1000 at $10,595-$13,551 are a better deal than those on the WP-500
- For any capacity factory-direct options such as RESIZE the price margin is around 40-60% lower than that of Profax US distributor.
- When purchasing used Weld Plus, Surplus Record and Mohawk Machinery have rebuilt units available.
