Plasma cutters are among the few tools capable of cutting metal with precision and speed. Whether you’re a skilled worker in metal fabrication or an amateur working with metal on a project, understanding how the tool functions will improve your comprehension of the craft. This article explores the fascinating science behind plasma cutting, starting with the principles that enable the tool to slice through conductive materials with speed and precision. We will delve into the step-by-step details explaining the entire process, from plasma generation to actual cutting, and thereby understand what makes plasma cutters so vital in modern industries. Continue reading to find out how this technology can innovate and `ease’ your cutting activities.

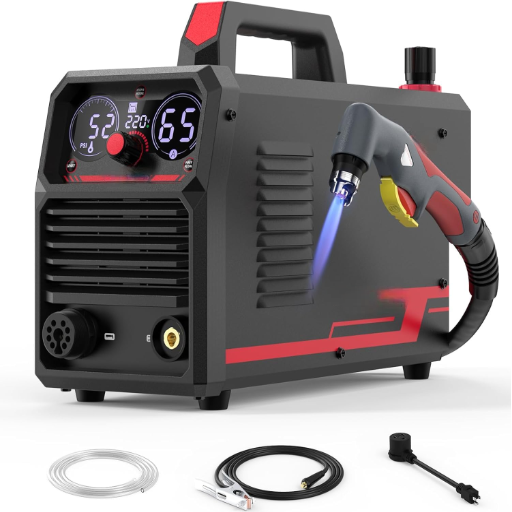

Understanding Plasma Cut and Plasma Cutter
By way of high-temperature ionized gas, plasma can cut through electrically conductive materials, such as steel, stainless steel, aluminum, and copper. A plasma cutter produces an electric arc through a gas-granting medium, which, when compressed, turns into plasma through heating. This plasma then melts the material, which is swiftly purged by a stream of gas blowing along with the molten metal; hence, the cut is clean. Because they are fast, precise, and easy to set up, plasma cutters have enjoyed a varied user base, depending on the material thickness to be cut.
What is Plasma Cutting?
Plasma cutting is a thermal cutting process that uses a concentrated jet of plasma at high temperature to slice materials capable of conducting electricity, such as steel, stainless steel, aluminum, and copper. From a technical perspective, the process involves generating an electric arc with a compressed gas in its path, typically air, nitrogen, or oxygen. The plasma is so hot that it heats up the material, and it can reach temperatures as high as approximately 40,000°F (22,000 °C). Meanwhile, the high-speed stream of gas simultaneously blows away the molten metal to create a smooth and precise final cut. Due to its speed and versatility, this process is widely applicable in cutting various thicknesses with minimal preparation in areas such as fabrication, manufacturing, automotive repair, and construction. More recently, advancements in plasma cutting system technologies have gained a reputation worldwide for making these systems the most accurate and energy-efficient, thus making them the choice of all tradesmen and hobbyists.
The Role of Plasma Cutter in Metal Fabrication
Indeed, plasma cutters have been a significant hurdle in metal fabrication, offering unprecedented precision, increased speed, and the ability to work on a variety of materials. According to recent studies, modern plasma cutting systems are capable of slicing steel, aluminum, or other conductive metals with a thickness that can go up to 2″, and do so with utmost accuracy. These can easily increase by over 20 inches per minute for thinner metals, thereby providing manufacturing units with a significant advantage in increasing productivity.
The advent of CNC plasma cutting has led to even further advancements in metal fabrication through plasma cutting. This allows intricate designing and complex cutting to be done with very little human interference. According to a crucial turnkey statistic drafted by industry sources, a CNC-plasma-cutting setup lowers material wastage by 20%, resulting in cost savings and environmental consciousness.
Furthermore, plasma cutting technology has become more energy-efficient with the introduction of high-definition plasma systems, enabling better cuts, more accurate results, cleaner edges, and fewer heat-affected zones, with energy consumption up to 30% lower than that of older systems. With such upgrades, these plasma cutters become a valuable asset in industries where demanding and precise forms of metallic work are required, from aerospace engineering to architectural design.
With innovative developments, plasma cutting technology remains at the forefront, enabling fabricators to meet today’s increasingly demanding requirements for efficiency and quality, while also considering sustainability.
Advantages of Using a Plasma Cutter
- Precision and Accuracy
Plasma cutters perform with high-level accuracy in their cutting operations. They can easily handle intricate designs with clean and smooth edges. This accuracy results in less material wastage and a better fit for the assembly process.
- Speed and Efficiency
Considering conventional methods, plasma cutters cut at an all-time fast rate. In less time, they cut through thicker metals, increasing productivity and project time.
- Versatility
Plasma cutters can work on any conductive material, including steel, stainless steel, aluminum, brass, and copper. This enables a wide range of applications in industries such as automotive, construction, and manufacturing.
- Cost-Effective
Plasma cutters can save costs on materials and operating expenses as they cause less material wastage, work faster, and require less energy. They are excellent for a long-term solution, budget-wise.
- Portability and Ease of Use
Being among the most significant types of plasma cutters available today, they are compact and lightweight, making them easy to transport. Simple, intuitive user interfaces stand out, making these plasma cutters easy to use, thereby enhancing their accessibility and convenience.

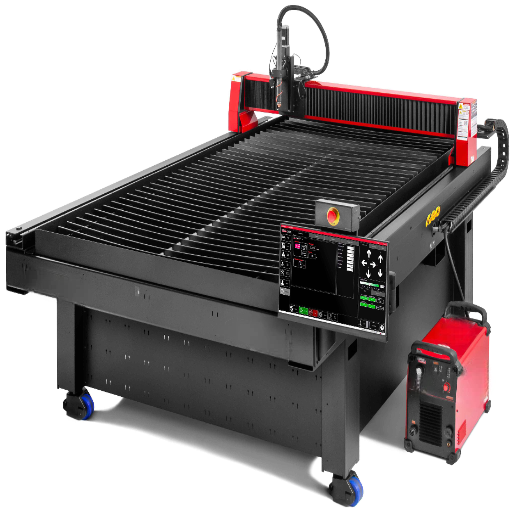

Types of Plasma Cutting Machines
- Handheld Plasma Cutters
Designed for manual operation, these cutters are ideally suited for small projects and intricate tasks. On the contrary, they are used in workshop settings, construction works, and repairs.
- CNC Plasma Cutting Machines
These highly detailed and automated CNC plasma cutting machines are well-suited for industrial-grade work that requires precision and repeatability.
- High-Definition Plasma Cutters
With high cutting quality, these machines use advanced technology to achieve slightly cleaner cuts with slight edge deformations. Industries thus use high-definition plasma machines when high precision is needed.
- Dual-Purpose Plasma Cutters
These multi-purpose machines combine processes such as plasma cutting with others, like welding, for efficient, multi-process capabilities.
Each type addresses a specific need, ensuring there is an appropriate machine for the diverse range of applications and industries.
Different Types of Plasma Cutters
The types of plasma cutters are: conventional, high-definition, water injection, underwater, precision air plasma, mechanized, dual gas, pilot arc, and non-pilot arc.
| Type | Key Features | Usage |
|---|---|---|
| Conventional | Basic plasma arc | General cutting |
| High-Definition | Precise, clean cuts | Industrial tasks |
| Water Injection | Cools arc, narrow kerf | Reduced distortion |
| Underwater | Water-filled chamber | Noise reduction |
| Precision | High accuracy | Complex designs |
| Air Plasma | Uses compressed air | Cost-effective |
| Mechanized | CNC-controlled | Automated cutting |
| Dual Gas | Two gases for energy | Versatile cutting |
| Pilot Arc | No direct contact | Rusty surfaces |
| Non-Pilot Arc | Direct contact needed | Cost-effective |
CNC Plasma Cutting Machines
CNC plasma cutting machines are a more high-powered description of CNC machines being married with advanced plasma cutting algorithms. These machines are designed to cut incredibly intricate shapes and patterns in metals with utmost accuracy and efficiency. According to the latest data from the Google search engine, CNC plasma cutting machines are utilized by businesses across various industries, including automotive, aerospace, and manufacturing, as they enable automated processes while reducing waste and ensuring consistent results. Additionally, because CNCs are programmable, operators can create a wide range of complex designs, which inevitably increases production and ensures accuracy. This, therefore, makes CNC plasma cutters an advantage for organizations that want to scale up while maintaining high standards in quality.
Comparison with Laser Cutting Machines
Comparison between Plasma Cutting and Laser Cutting: Typically, plasma cutting is faster and less expensive for thick, conductive metals, while a laser offers greater precision and flexibility when working with thin materials and non-metals.
| Parameter | Plasma Cutting | Laser Cutting |
|---|---|---|
| Precision | Moderate (±0.5–1mm) | High (±0.01mm) |
| Speed | Faster for thick metals | Faster for thin metals |
| Materials | Conductive metals only | Metals & non-metals |
| Thickness | Up to 38mm | Up to 25mm |
| Cost | Lower upfront & running | Higher upfront & running |
| Maintenance | Less frequent | More frequent |
| Kerf Size | Larger | Smaller |
| Radiation | Produces radiation | Minimal radiation |
| Engraving | Not possible | Possible |
| Reflective | Better for reflective | Struggles with reflective |

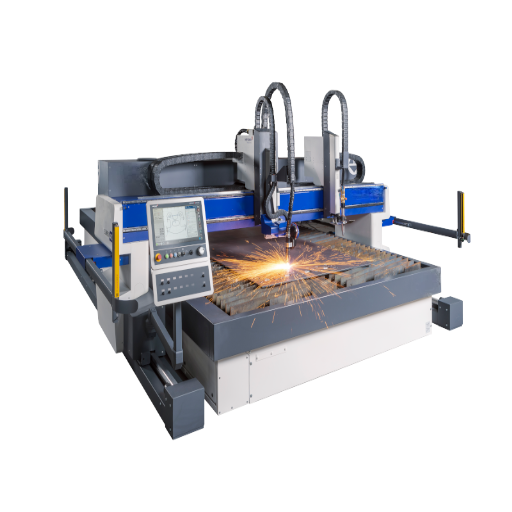

Factors Affecting Cut Quality and Speed
Although many variables influence the cut quality and speed in CNC plasma cutting machines:
- Material Type and Thickness – Different materials and thicknesses significantly impact the time required to cut correctly. Thinner workpieces allow for faster cuts, whereas heavier materials require slower cutting speeds for precision.
- Plasma Torch Settings – One must attentively set the amperage, voltage, and gas pressure. If the parameters are set incorrectly, the edges and quality of the cut would be of poor quality, and the operation might be slowed down.
- Cutting Speed – If the recommended speed for the material is adhered to, the cuts will be made appropriately. Too fast a speed might lead to incompletion of reductions, while too slow a speed produces heat and rough edges.
- Quality of Consumables- The condition of consumable parts, such as electrodes and nozzles, directly influences cutting quality and efficiency. Consumables that have become worn or damaged must be replaced immediately; otherwise, they will degrade performance.
- Machine Maintenance – Regular maintenance, such as cleaning and calibration, helps ensure that the cut quality remains consistent and no operational problems develop.
Focusing on these factors enables operators to achieve the best possible performance, balancing quality and speed across various cutting methods.
Influence of Plasma Gas on Cutting Performance
The selection of plasma gas determines the cut quality, cutting speed, and efficiency. Numerous gases are used, including air, oxygen, nitrogen, and argon-hydrogen mixtures, among others, each of which is particularly suited to specific situations and objectives.
- Air Plasma – Compressed air serves as the primary source of plasma-gas generation due to its widespread availability and low cost. It cuts mild steel very well, but it produces oxidized-edged finishes that, in some applications requiring high finishes, must be cleaned secondarily.
- Oxygen Plasma – Oxygen works best on carbon steel, minimizing and sometimes eliminating the need for finishing after cutting due to superior edge quality and low dross formation. Others have suggested that oxygen plasma can increase cutting speed by about 25% compared to air plasma.
- Nitrogen Plasma – Nitrogen is a versatile option ideal for cutting non-ferrous metals such as stainless steel and aluminum with excellent edge quality and consistency. It is often used when precision is required in various industries.
- Argon-Hydrogen Mixtures – The mixture is best for thick stainless steel and aluminum. Hydrogen enhances energy transfer, yielding smooth and dross-free cuts. However, according to recent data, this mixture produces the best results for materials thicker than 1 inch, although it is usually more expensive than other gases.
- Plasma gas technology has undergone various advancements, enabling the optimization of cutting efficiency through alterations in gas pressure and flow. Present studies emphasize that selecting an appropriate gas flow rate can reduce bevel angles by around 20% and improve the smoothness of cut surfaces by almost 15%.
Choosing the plasma gas, along with the appropriate settings, is the first step in optimizing the process for a specific application, allowing for increased productivity, reduced costs, and improved quality outputs.
Adjusting Cutting Speed for Different Metals
Cutting speed governs the production of precise and clean cuts in various metals, as each material responds differently to the plasma-cutting process. Generally, for softer metals and materials, such as aluminum, higher cutting speeds are preferred to prevent the heat condition from adversely affecting the workpiece. The metal’s low melting point may be exploited to produce a nice finish. Conversely, with harder metals such as stainless steel, the plasma-cutting competencies should be maintained at a slower speed to control warping and ensure consistent cuts.
Recent research from Google states that analysts recommend cutting 304 stainless steel (1/4″ thickness) within a speed window of 60–80 inches per minute, while aluminum of the same thickness can be effectively cut at a speed of 120–140 inches per minute. Applying exact optimization in speed, combined with gas and amperage settings, helps operators achieve perfect results on specified metals, while being environmentally friendly by reducing waste, and concurrently enhancing operational efficiency. Therefore, a specific and customized approach toward working with various materials is critical in the field of plasma cutting.
Impact of Plasma Arc Size on Cutting Thickness
The diameter of the plasma arc is only directly proportional to the thickness of the material capable of being effectively cut. A very narrow plasma arc offers greater precision, making it suitable for cutting thin materials with intricate designs. A wider plasma arc imparts a higher energy density, allowing for faster cutting of thicker metals. As reported by recent industry data, we are aware to some extent that a high-definition plasma system, for instance, further improves arc control by utilizing application-oriented nozzles and employing refined gas flow to maintain the arc at a higher power level, enabling the cutting of thin or very thick materials with great accuracy. This just underscores the point that, depending on the width of the arc and material thickness, the actual cut quality should be considered to enhance productivity and consistency of results.

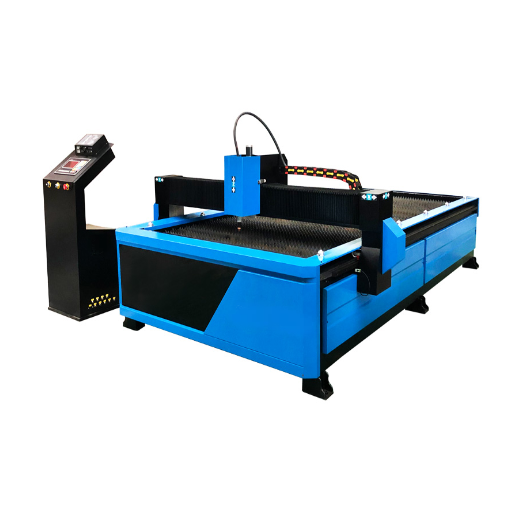

Applications of Plasma Cutters
Plasma cutters enjoy wide popularity among various industries, thanks to the clean and well-finished cuts they can produce on conductive metals. Applications include:
- Metal Fabrication: Perfect for cutting steel, aluminum, and other metals used in manufacturing structures, components, and machinery.
- Automobile Industry: Used in repairing or customizing vehicles, mainly cutting metal parts and shaping them.
- Construction: Mainly to cut beams, sheets, and pipes during construction.
- Art and Design: Metal artists use them to form intricate designs and sculptures with absolute precision.
- Maintenance and Repairs: Good for industrial applications such as cutting damaged parts or dismantling heavy equipment.
It is their varied functions and efficiency that make plasma cutters essential in both industrial and artistic applications.
Industries Utilizing Plasma Cutting Machines
Unparalleled precision, speed, and efficiency have made plasma cutting machines a necessity in numerous industries. The industries making the best use of these machines, per the information available now, under:
- Automotive Manufacturing: Plasma cutters play a crucial role in manufacturing and repairing automotive parts, including frames, panels, and exhaust systems, to ensure faster production and higher-quality results.
- Construction and Infrastructure: Steel beams cutting for skyscrapers and steel sheet preparation for bridges; on the contrary, plasma cutters become necessary in the shaping of modern-day infrastructure.
- Shipbuilding and Marine: Able to go through thick metals fast and reliably, plasma cutters find application in the building and maintenance of ships and marine equipment.
- Aerospace: Plasma cutting machines are essential in aerospace manufacturing processes for creating intricate components where precision is critical and there is minimal tolerance for error.
- Custom Fabrication and Artisanship: Craftsmen and metalworkers utilize plasma cutters to create intricate custom designs for decorative art, furniture, and signage.
- Due to their extensive applications, plasma cutting machines continue to innovate and shape industries according to the demands of evolving technologies and global markets.
Using Plasma for Cutting Thick Metals
Plasma cutting is one of the most superior and efficient modes of cutting thick metals. This process utilizes ionized gas, heated to an extremely high temperature, and channelized as plasma, which can melt metals and cut them with precision and speed in a matter of seconds. A brief search across the internet would yield terms related to the maximum thickness that can be cut using plasma cutting. Generally, a plasma cutter is employed to cut materials of 1-2 inches in thickness; however, industrial-grade plasma cutters can cut metals thicker than 3 inches based on the electron power of the cutter and the type of metal being considered. With CNC-controlled plasma systems combined in tandem, operators work with thicker materials to achieve consistent and precise cuts: a boon to manufacturing, construction, and fabrication industries.
Innovations in Plasma Cutting Technology
With recent developments in plasma cutting technology, significant advancements have been made in the industry, leading to improvements in precision, efficiency, and versatility. One such development is the introduction of HD plasma systems. These systems offer improved arc stability, resulting in cleaner, more precise cuts that are less prone to edge beveling, particularly with thicker materials. According to data from some of the most reliable sources, an HD plasma system (in ideal circumstances) can achieve cutting tolerances as tight as ±0.008 inches, which is comparable to the precision of laser cutting at a fraction of the cost.
Another notable advancement is the adoption of automation, such as CNC plasma cutting. A combination of sophisticated software algorithms and modern hardware enables this system to reduce human error and improve productivity. According to reports, CNC plasma cutters can increase cutting speeds by almost 70%, thereby significantly enhancing production throughput.
Another trend is the development of mixed-gas technology to improve material compatibility and edge quality. A gas mixture containing argon, nitrogen, and hydrogen provides a smoother cut of stainless steel and aluminum, while minimizing dross. Studies showed that the use of these dual-gas schemes can reduce secondary processing time by 30%.
Portable plasma-cutting machines are becoming increasingly prevalent these days, offering high power in a compact design and ensuring lightweight performance for on-site operations. Inverter-based plasma cutters represent one of the recent developments, wherein energy savings of nearly 50% were realized compared to older transformer-based counterparts, thereby benefiting both the operator and the environment. In a nutshell, these technological advancements serve as a testament to the ever-evolving nature of plasma cutting technology, offering increasing speed, precision, and flexibility to diverse industries.
Reference Sources
- “Experimental analysis of the effect of gas flow rate and nature on plasma arc cutting of hardox-400”
- Authors: D. Naik, K. Maity
- Published: December 14, 2019
- Key Findings: This study investigates the impact of various gas flow rates and types on the quality of cuts made in Hardox-400 steel using plasma arc cutting. The results indicate that the choice of gas and its flow rate have a significant impact on the kerf width, surface roughness, and heat-affected zone (HAZ) of the cut.
- Methodology: The authors conducted experiments using a CNC plasma cutting machine, varying parameters such as gas pressure, cutting speed, and arc gap. The quality of the cuts was assessed through measurements of kerf width and surface roughness.
- “Analysis of Process Parameters of Plasma Arc Cutting Using Design of Experiment”
- Authors: Surya Vatsal Kaushik
- Published: March 10, 2022
- Key Findings: This paper focuses on optimizing the process parameters for plasma arc cutting to achieve better surface quality and efficiency. The study emphasizes the importance of selecting suitable parameters to minimize defects and enhance overall cutting performance.
- Methodology: The author employed the Taguchi method for experimental design, analyzing the effects of various parameters such as gas pressure, current flow rate, and cutting speed on the quality of the cuts.
- “Investigation and Optimization of Plasma Arc Cutting Process”
- Authors: D. Naik
- Published: 2019
- Key Findings: This study offers insights into optimizing plasma arc cutting processes, with a focus on the relationship between cutting parameters and the quality of the cut. The findings highlight the importance of selecting parameters carefully to optimize cutting efficiency and quality.
- Methodology: The research involved experimental trials to evaluate the effect of various cutting parameters on the performance of the plasma cutting process.
