Laser Cutting vs. Plasma Cutting vs. Waterjet: Which Cutting Wins?

Precision cutting can be done in several ways. The most common types include laser cutting, plasma cutting, and waterjet cutting. All of them have individual virtues and broad professional applications. However, which one is more suitable for which purpose is the big question. As everyone uses only metal or plastic materials, the type of cutting chosen for processing plays a significant role in the efficient completion of the work, costs, and quality. This article discusses the primary effects of these cutting technologies on material-less processing, categorizes the favorable and unfavorable characteristics, and thus provides a well-justified conclusion. You will have another opportunity to review the methods and identify which one best meets your individual needs by the end.

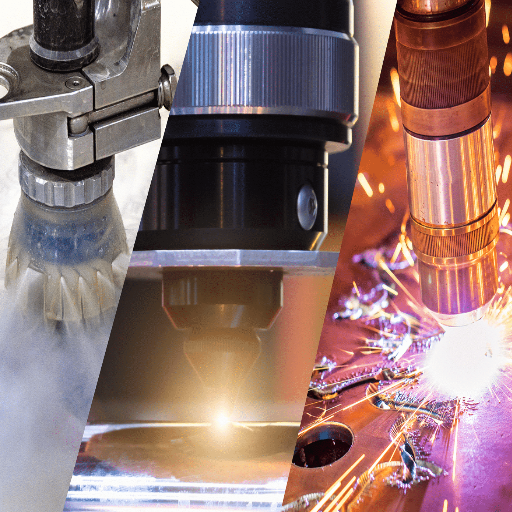

Overview of Cutting Methods

When considering the method of separation, information about positive aspects of each technology will not be redundant:

1. Laser Cutting: This is suitable for delicate tasks, as laser cutting involves using a concentrated beam to cut a slot. It is highly efficient for cutting thin sheets of metal, plastics, and knives, resulting in accurate edges and low wastage.
2. Plasma Cutting: This is a process where a gas, which may be ionized, is used to cut conductive metals, such as steel or aluminum. Efficiency and speed are the key highlights of this technique, particularly for thicker materials.
3. Waterjet Cutting: Waterjet cutting is a versatile technology that utilizes high-pressure water to cut a wide range of materials, including metal, stone, and glass, by mixing an abrasive into the water. It is exact and, most importantly, it is not warm, making the distortion of materials impossible.

Every method has its advantages and disadvantages; therefore, it is necessary to consider the material or materials to be cut, the desired cut quality, and the complexity of the task before making a choice.

What is Laser Cutting?

Laser cutting technology is a manufacturing process that uses a laser beam to make precise cuts, engrave, or mark materials. The lasers used for cutting are typically generated by a laser source incorporating the aforementioned technologies, such as CO2, fiber, diode, or other types of lasers, and guided through the cutting head by gas-directed optics. The carbon dioxide laser (CO2 laser) is primarily used for cutting through various materials, producing a thin beam that facilitates high-precision cutting. This selective removal of material can be achieved by inducing chemical reactions, ablation, or melting using lasers. Almost all the incisions created by lasers involve the expulsion of melted or vaporized material. Laser cutting has been designed to meet these requirements. Equipments used in laser cutting and its applications cannot be underestimated.

Understanding Plasma Cutting

The precise cut of electrically conductive materials is achieved without difficulties with a plasma torch. Briefly, this technique works by welding an electrode to the surface, which creates an arc; therefore, causing the gas to form part of it and turn it into plasma. This plasma is extremely hot, rapidly heating the workpiece, and a riveted flow of high-velocity gas erases the spreading metal, resulting in fine cutting with polished edges. However, when it comes to cutting materials having a large thickness, especially steel, stainless steel, and aluminum, fabrication shops can achieve this faster and with higher quality as compared to abrasive and thermal cutting methods. According to the most recent statistics published by Google, it is clear that many people are interested in finding solutions for plasma cutting due to its effectiveness, transportability, and the freedom to create even the most complex art forms, starting from bulky sections of materials.

Introduction to Waterjet Cutting

The technology of cutting using water under high pressure (or waterjet cutting) is one of those that can never disappoint. The waterjet cuts through various components using high-pressure jets of water, sometimes with redundant materials acting as the refreshing agents. This process cleans and washes all materials with the steam from the jets, resulting in smooth cuts. In everything else cut off from surveillance roles, people tend to compare waterjet cutting with other methods, believing it to be equal to all other cutting techniques, such as laser and plasma, while at the same time emitting no considerable amounts of heat. It has an incalculable edge over other cutting techniques, especially in guaranteeing cutting without the introduction of heat, thereby eliminating deformation in heat-sensitive workpieces. This is particularly thanks to the ability to work precisely with not only regular metals and a variety of other plastic materials, but also ceramic, glass, and many other composite materials, where precision is of the essence. Moreover, its eco-friendly operation, characterized by the elimination of toxic waste and heat during manufacturing, has led to immense approval in sectors such as aerospace, automotive, and contract manufacturing.

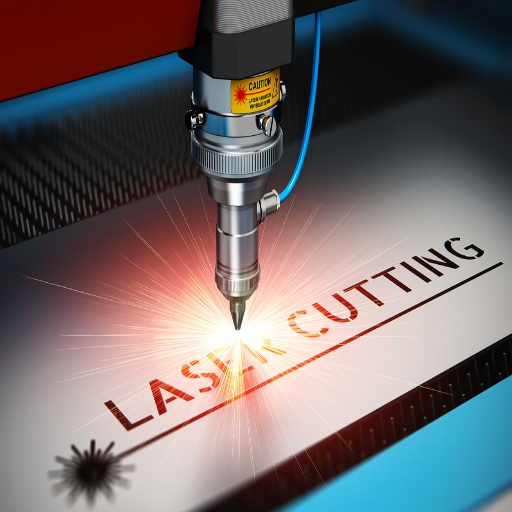

Laser Cutting vs Plasma Cutting

In brief, laser cutting presents several advantages, such as a high level of precision, edges free from burrs, easy laser cutting of various substances, while plasma cutting is considered for situations when one needs a quicker method that is cheaper and works best with high-thickness conductive metals.

Parameter	Laser	Plasma
Precision	±0.005 in	±0.015 in
Edge Quality	Smooth	Rougher
Materials	All types	Conductive only
Thickness	Up to 1 in	Up to 2 in
Speed	Faster (thin)	Faster (thick)
Cost	Higher	Lower
Heat Effect	Minimal	Present
Maintenance	Expensive	Affordable
Setup	Complex	Simple
Applications	Precision work	Heavy-duty work

Advantages of Laser Cutting

• High Precision and Accuracy

Laser beam divisions are a remarkable advancement, capable of producing very high accuracy, even on complex-shaped designs with tolerances as tight as ±0.001″. It is due to this fact that this technology is best suited for use when frameworks involving numerous dimensions need to be maintained.

• Smooth Edge Finish

Laser cutting technology is so advanced that when the beam is focused, there are no burrs on the edge, to the extent that polishing is not needed, similar to cutting, and the edges remain smooth.

• Minimal Material Waste

Additionally, because it is so precise, laser cutting minimizes material wastage, as laser cutting parameters are carefully set to reduce losses. It allows for the use of lead, which enables the slicing of materials to the full size of the raw materials without generating high quantities of scrap, and instead necessitates the remaking of the materials with other explosives.

• Versatility Across Materials

The adaptation of laser cutting in industrial applications has taken on a myriad of variations, and the technology can be applied to a wide range of materials, including metals, plastics, wood, and even fabric, making it applicable to serve a variety of industrial needs.

• Automation and Speed

Laser cutting machines have been equipped with automation in recent times, enabling faster processing times and lower labor costs. To a greater extent, even more significant productivity increases have been achieved.

Benefits of Plasma Cutting

• Higher Speed of Cutting

Plasma cutting outpaces traditional cutting techniques in speed, especially when it relates to cutting thin materials. Production procedures are shortened, and productivity is brought to the highest level.

• Its ability to Burn Through various Materials

Plasma cutting is used with various metallic materials, including steel, stainless steel, aluminum, brass, and copper; thus, it is a versatile machine.

• Sharp and Clear Cuts Guaranteed

Against all odds, plasma cutting provides smooth cuts that require less processing time, maximize the utilization of the part, and result in far less surface dross.

• Profitable in Operation

In comparison to other methods, such as laser and plasma cutting, plasma cutting has reasonable operating costs due to its low-priced units and running costs. This also can reduce the scrap level.

• Flexibility, Ease of Making Changes, And Movement

In contrast to older systems, the present-day plasma cutting systems are designed to be small in size and are therefore more mobile. The user is also given an easier time when setting them up and operating them, and, hence, it does not matter what experience level the user is at.

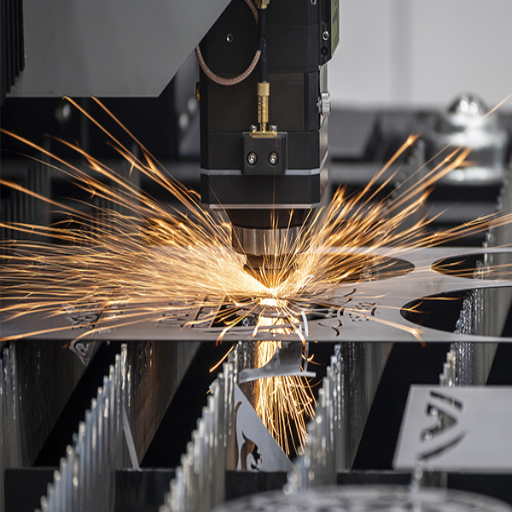

Cutting Material Considerations

When selecting materials for plasma cutting, it is essential to consider the type, thickness, and conductive properties of the material. Plasma cutting works quite well on electrically conductive metals, such as steel, stainless steel, and other materials, including aluminum. For thicker materials, a higher system amperage may be required to achieve clean and precise cuts. And moreover, one can increase the speed of cutting and improve the quality of the cutting edge by working with specific material properties, such as the material’s hardness and heat resistance. It is necessary to quickly adjust the settings to the minimum while cutting, to avoid any part of the work being ruined due to inaccuracy.

Best Materials for Laser Cutting

Laser cutting is a popular machining method that offers numerous advantages, particularly in its versatility across multiple materials. Below are five materials suitable for the laser cutting process: mild steel, stainless steel, aluminum, polycarbonate, and acrylic, each with specific aspects that determine their usability in such activities.

• Mild Steel

Details: Straightforward to cut when using a laser due to its high iron content, thus it can be fabricated into a complex shape with clean contours. The requirements in terms of capability are minimal for thin sections and can be scaled to accommodate varying thicknesses.

Applications: Found applications among other things in building and construction, especially in the making of auto spares, and other facilities for supporting products, as a base material for steel production.

• Stainless Steel

Details: It possesses unique qualities that no hard metal can match, including a great deal of strength and corrosion resistance, which explains why it is so much easier to use for laser cutting applications. The focus here is more on preparing the materials, as higher sheet metals require extra power to cut.

Applications: In the healthcare sector, quality medical accessories lead the way in applications, along with kitchen equipment stores, and also in construction for stability requirements.

• Aluminiumкрыть

Details: Because aluminium is a lightweight material with high reflectance, it may sometimes require adjustments to address reflected problems associated with this metal.

Explanation: leads one to the conclusion that lower thermal conductivity.

Contemporary industries, such as aviation, niche vehicles, and industrial electronics, commonly use these materials, especially plastics.

• Plywood

Description: Plywood is a standard non-metal material that is used in laser cutting. It can be applied to thin-sheet wood laser cuttings, as these sheets cut easily and cleanly and have a slight burning around the edges, which adds an attractive contrast to their aesthetics.

Applications: It finds its application in the design of various pieces of domestic interiors and furniture, as well as in the study of dimensions and proportions with the help of architectural layouts.

• Acrylic

Details: It is a versatile and transparent plastic, and is the most common type of material for quickly removing cut pieces and creating very even and shiny edges. It is available in various hues and comes in different thicknesses for more creative works.

Applications: The most significant demand for this engineering plastic material comes from the manufacture of signs, as well as from advertising and display.

Metal Types Suitable for Plasma Cutting

Metalworking is far from redundant in the current era, as there is a breakthrough technology called plasma cutting that uses a compressed, ionized gas to create metal parts for airplanes and cars, a far-fetched concept, isn’t it? But these experiments are all grounded in reality. Plasma cutting is a high-speed and precise process, which can be utilized in cutting almost any metal, subject to the restrictions of the metal’s conductivity for live cutting and thickness. A few categories of metal are these:

• Steel

Examples: Fusion welding penetrates the 10 mm thick base material, while the penetration of the thicker base material is reached through plasma cutting. Using plasma cutting techniques to create a significant cut in materials such as aluminum will have a minimal impact on the material’s structural integrity. Appreciation of the range of steels available can improve the ability to maximize the capability of plasma processes to enhance material removal rates and quality, and thus enhance the economic features of any plasma system.

A suggestion is that the varied material of the composite steel should be split into its four major constituents before plasma treatment is made. If any thermoplastics prevent plasma cutting, these materials can be removed by chamfering them from the face using optical treatment, magnets, or other means.

• Aluminum

Examples: With the steel structure, a person might design a picture of an aluminum sculpture and then cut out the desired shape.

A suggested solution for a porous composite aluminum material is to treat the thin pores in the form of a slot while immersed in a polyelectrolyte solution, particularly one containing molybdate. Also, do not be afraid if this action may lead to a decrease in transparency quality, as cut-edge discoloration can be removed from the fold lines of the weld and blended into another colored range, and the borders can be refined to maintain the given transparency.

• Copper

More information: Due to the high conductivity property of chrome, this metal does resist plasma cutting; however, this obstacle can be overcome with competitively high efficiency by applying the proper control parameters.

Suitability: It is primarily engaged in electrical equipment, industrial and residential roofing, and sanitaryware applications.

• Bronze.

Subpoints: When it comes to beauty, brass is among the traditionally more aesthetically pleasing metals, which, when cut using plasma, can serve both structural and decorative purposes.

Suitability: This application is commonly used in the manufacture of sound instruments, pipes, and other items of engineering and construction significance.

For these and other types of metals, plasma cutting is usually the ideal operational solution. Plasma cutting remains one of the most effective methods for achieving precise shape adjustments and tailoring them to current production requirements and internal innovation.

Waterjet Applications for Various Materials

Hydro Dynamic Waterjet is a non-traditional, versatile, and precision cutting technology that is gaining popularity among the diverse industrial sectors for being able to cut several types of materials without ‘heat-induced distortion’. The following are common materials processed using Hydro Dynamic Waterje,t along with the processes:

• Steel

Details: Waterjet cutting is widely used for cutting steel of various thicknesses, yielding smooth cuts with no impact on the metal’s properties.

Applications: Majorly used in building and construction, as well as in the making of engines and structural components of vehicles.

• Glass

Details: Conventional fabrication employs thermal processes to alter the shape of glass. This is not the case with waterjet technology. It allows glass contours to be designed and changed without breaking or chipping,g yielding very accurate outputs.

Applications: Waterjet cutting of glass is a common practice and finds applications in the design of architectural elements, the production of windows, mirrors, and decorative panels.

• Ceramics

Details: When working with complex and dense ceramic materials, waterjet cutting is highly effective, as it achieves minimal material flaws through precise cutting.

Applications: The attributes of ceramics have been modified, resulting in the creation of products such as floor and wall tiles, metal bodies for heavy industry applications, and even human implants.

• Aluminum

Additional Information: Aluminium, known for its lightweight and tensile properties, can be effectively machined by waterjet to eliminate burrs.

Usage: This metal is widely employed in the advanced, shipping, and packaging industries.

• Rubber

Additional Information: Rubber’s stretchability makes it a perfect material for waterjet usage, which is also popular for its precise delivery and cleaning capabilities without risk of part damage.

Applications: Used in making hydrogaskets, seals of different types, and machine parts, including those for use in industrial sectors.

Water jet continues to be a cut above other cutting mechanisms for the aforementioned sectors and engineers due to its advantages in precision cutting, productivity, and quality.

Operating Costs and Efficiency

It is known that waterjet cutting is a reliable and cost-effective method for producing accurate and intricate work. The main costs associated with running a waterjet cutting mechanism are water use, electricity, abrasive materials and other consumables, as well as routine machine maintenance. Given that, in particular, the use of abrasives can be a considerable cost, but this is compensated for by the rapid destruction of the sharing and turning over of machine materials. Moreover, there is no warpage of parts due to the lack of heat-affected zones, which again implies time and money saved on extra activities such as finishing. Thus, the aspects above prompt the application of waterjet cutting, particularly in industries that require cost-effective and reliable production methods.

Cost Analysis: Laser Cutting vs Plasma Cutting

Narrower Summary: When it comes to comparative prices, plasma cutting is more commonly known for cutting thicker materials and is best suited for those with minimal designs, whereas laser cutting is comparably more expensive, allowing for a wider use of the beam with the promise of precision cutting.

Parameter	Laser	Plasma
Initial Cost	$50k–$500k	$10k–$200k
Running Cost	Higher	Lower
Maintenance	Expensive	Affordable
Speed	Faster (thin)	Faster (thick)
Precision	±0.005 in	±0.015 in
Material	All types	Conductive only
Thickness	Up to 1 in	Up to 2 in

Operating Costs of Waterjet Cutting

Water jet cutting provides a unique combination of accuracy and flexibility in its cutting shapes. The two physical properties define everything that an ideal work would require to be a practical tool suitable for any industrial setting. However, its fees must be carefully ascertained in relation to its operation and application in various industries. The most significant expenditure that cuts across all projects is the consumption of abrasive materials, water, electricity, and maintenance.

1. Abrasive Material Costs: Abrasive garnet is a significant consumable in waterjet cutting, typically constituting 60-80% of the total operating cost. On average, garnet usage can range from 0.5 to 1.5 pounds per minute, depending on the material and cutting speed. Given that garnet costs between 20 and 30 cents per pound, the price of the abrasion is probably somewhere between $12 and $30 per hour.
2. Water is used in the water cutting process, where it is sprayed into a high-pressure jet. An average waterjet cutter’s water consumption is between 0.5 and 1 gallon per minute. Such water is usually inexpensive; however, other costs, such as the purchase of purification equipment or disposal charges, may need to be incurred to comply with air pollution control regulations.
3. Electricity is another significant cost in waterjet cutting, as the cutting process cannot be carried out without water. The high-pressure pumps, which are two in number, are the machines that consume the energy in the process. The industry standard electricity costs in dollars per hour tend to fall within the range of $ 5 to $ 15, depending on the size of the pump and geographical location. Additionally, the use of efficient pump systems will reduce power requirements.
4. Service, cleaning, and operation differ from the other sections of the jet cutting machine. To live longer, water jet cutting machines require regular maintenance. Nozzles, seals, and high-pressure lines are operational elements that sometimes wear out and also need frequent replacement. Maintenance costs may range from $6 to $10 for one operating hour.

Depending on the materials used and the design of the waterjet machine, the typical operating costs for waterjet cutting range from $15 to $40 per hour. At first glance, the initial and operational charges may be expensive, but the economics of waterjet cutting will argue otherwise. Consistent tolerances, minimal scrap materials, and no additional edge finishing are some of the long-term cost advantages. Thus, for manufacturing plants that require work with controlled tolerances and shortened cycle times, this equipment is the most suitable.

Efficiency of Fiber Laser Cutting

Known for effectiveness, cost-efficiency, and seamless cutting, the fiber is the most sought-after in many sectors due to the following reasons. Fiber lasers cut faster than the CO2 cutting system by using laser beams that magnify the penetration focal depth, focusing primarily on thin to medium materials such as stainless steel, carbon steel, and aluminum. Recent studies have shown that fiber lasers can cut almost three times faster than CO2 lasers on specific material thicknesses. Additionally, fiber lasers are highly resistant to energy, which also helps reduce operational costs. The requirement for their service is lower, and they have a longer life, hence they have the potential of being very beneficial to businesses as they can be used to enhance productivity without compromising on focus. It is for these reasons that this methodology is regarded as the best one for current industrial applications.

Reference Sources

1. Comparison of laser beam, oxygen and plasma arc cutting methods in terms of their advantages and disadvantages in cutting structural steels
   • Authors: G. Irsel, B. N. Güzey
   • Publication Date: December 1, 2021
   • Journal: Journal of Physics: Conference Series
   • Citation Token: (Irsel & Güzey, 2021)
   • Summary: This study investigates the cutting success of laser beam, plasma arc, and oxygen cutting methods on structural steels. The authors conducted experiments on tensile specimens to analyze microstructure, hardness, surface roughness, and strength after the cutting process. The results indicated that plasma arc cutting is more cost-effective than laser cutting, but it leads to increased hardness on the cut surfaces, making subsequent machining operations more challenging. The study also noted that laser cutting produced less vertical inclination on the cut surface compared to plasma cutting.
2. Plasma Cutting of Structured Sheet Metals in Comparison with Laser Beam Cutting
   • Authors: Leander et al.
   • Publication Year: 2015
   • Citation Token: (Leander et al., 2015, pp. 135–144)
   • Summary: This paper qualifies the plasma cutting process for thin structured sheets as an alternative to laser cutting. The authors performed roughness and straightness measurements and assessed the absence of burrs. The findings showed that plasma cutting can achieve good quality on structured sheets, comparable to laser cutting, particularly in terms of surface finish and straightness.
3. Top Plasma Cutting Machines Manufacturers and Supplier in China

Frequently Asked Questions (FAQs)

What is the difference between plasma cutting and laser cutting?

The primary difference between plasma cutting and laser cutting lies in their cutting methods. Plasma cutting utilizes a high-velocity jet of ionized gas, or plasma, to cut through metal, while laser cutting employs a concentrated laser beam to melt and vaporize the material. This leads to differences in precision, speed, and suitability for various materials.

How does a laser cutter work compared to a plasma machine?

A laser cutter operates by directing a focused beam of light onto the material, melting it away to create precise cuts. In contrast, a plasma machine uses an electric arc to superheat gas, allowing it to cut through metals with a high-speed plasma jet. This results in varying levels of accuracy and edge quality between the two methods.

When should I choose plasma cutting over laser cutting?

You might choose plasma cutting when working with thicker metals, as it can cut through materials up to several inches thick more efficiently than a laser system. Additionally, plasma cutting is often more cost-effective for large-scale projects where speed is a priority, whereas laser cutting is preferred for intricate designs and thinner materials.

What are the advantages of using a fiber laser cutter compared to traditional plasma cutting?

Fiber laser cutters offer several advantages over traditional plasma cutting, including higher precision, faster cutting speeds, and improved energy efficiency. Fiber lasers produce a more focused beam, resulting in cleaner cuts and fewer heat-affected zones. This makes them ideal for intricate designs and thinner materials, unlike plasma cutting, which can produce rougher edges.

How do CNC plasma cutting machines differ from CNC laser cutting machines?

CNC plasma cutting machines use a computer-controlled system to guide a plasma torch for cutting, while CNC laser cutting machines use a laser beam. The main difference lies in the cutting process, with plasma cutting being more suitable for thicker materials and laser cutting providing greater precision for thinner materials. Both systems offer automated cutting solutions but serve different needs in metal fabrication.

Is plasma cutting less accurate than laser cutting?

Yes, plasma cutting is generally considered less accurate than laser cutting. Plasma cutting can produce wider kerfs and rougher edges, making it less ideal for precision work. In contrast, laser cutting offers finer detail and smoother edges, making it a preferable choice for applications that require high accuracy.

What are the cutting requirements for laser cutting and plasma cutting?

The cutting requirements for laser cutting typically include a clean and stable surface, optimal thickness for the material, and proper gas settings. Plasma cutting may require similar considerations but is more forgiving with surface conditions and can handle a broader range of material thicknesses. Understanding these requirements can help in selecting the appropriate cutting technology for specific projects.
